Monitor GDS Data

  1. Connect GDS to Data Link Connector(DLC).
  2. Ignition "ON" & Engine "ON".
  3. Selet "Current Data" mode and monitor "SPORTS MODE SELECT S/W, SPORTS MODE UP S/W, SPORTS MODE DOWN S/W" parameters.
  4. Change shift lever to "Sports Mode".

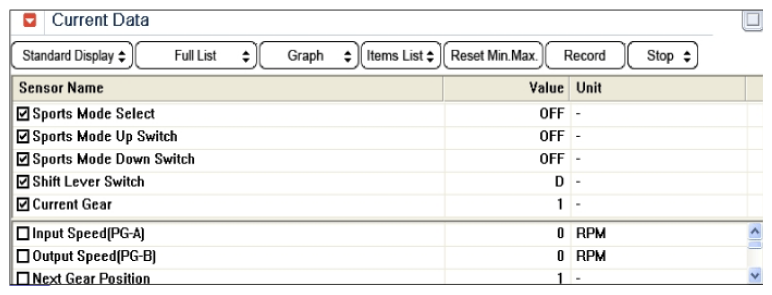

    Fig 1: Display - "D" Range
    G08332451Courtesy of KIA MOTORS AMERICA, INC.

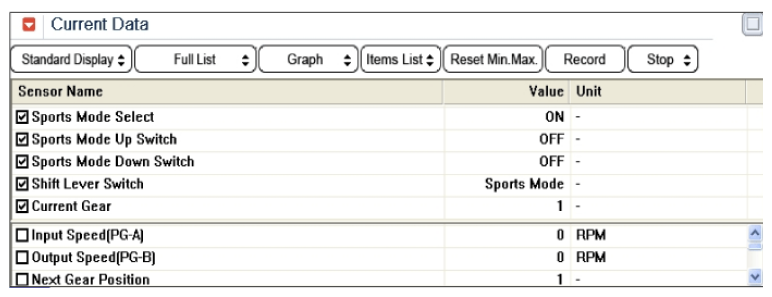

    Fig 2: Display - "Sports Mode ON"
    G08332452Courtesy of KIA MOTORS AMERICA, INC.

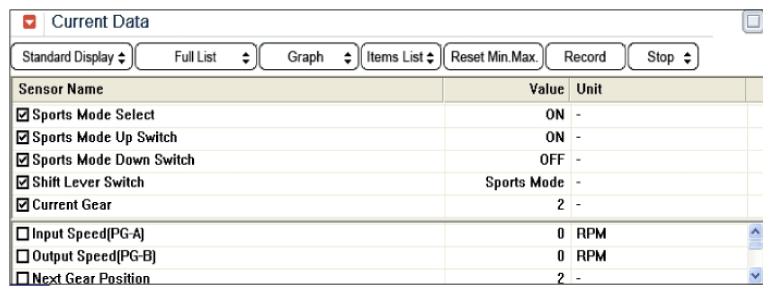

    Fig 3: Display - "Sports Mode Up Switch ON"
    G08332453Courtesy of KIA MOTORS AMERICA, INC.

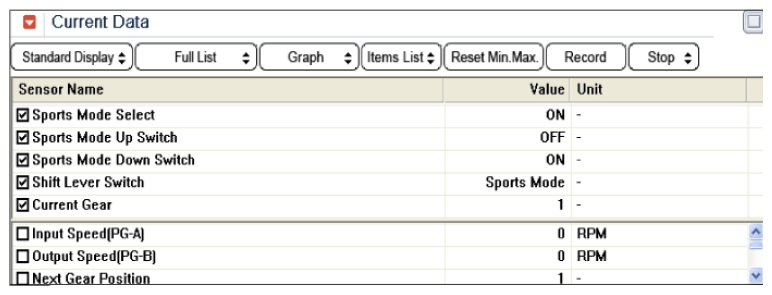

    Fig 4: Display - "Sports Mode Down Switch ON"
    G08332454Courtesy of KIA MOTORS AMERICA, INC.
  5. Is Sports Mode Switch working within specification?

    YES

    • Fault is intermittent caused by poor contact between PCM and Sensor, and DTC was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
