Signal Waveform & Data

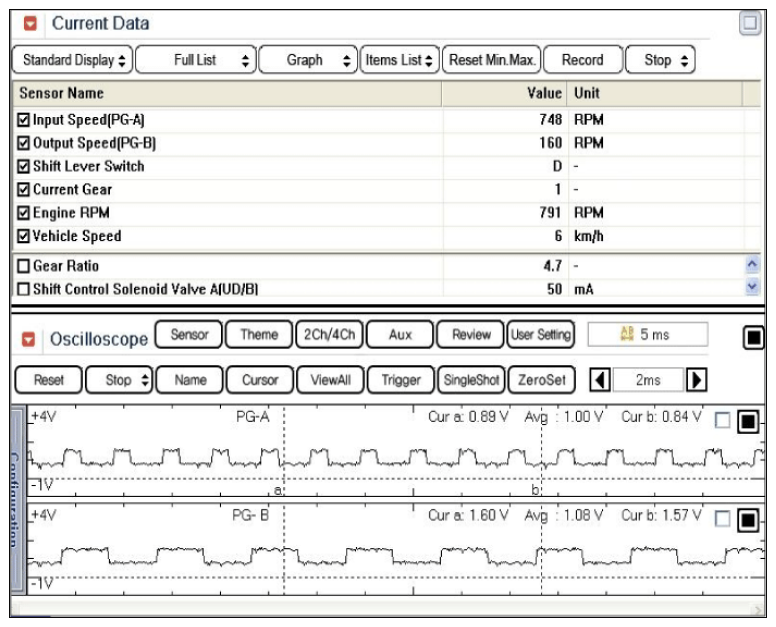

Fig 1: Display - Input/Output Speed Sensor At Low Speed
G08332239Courtesy of KIA MOTORS AMERICA, INC.

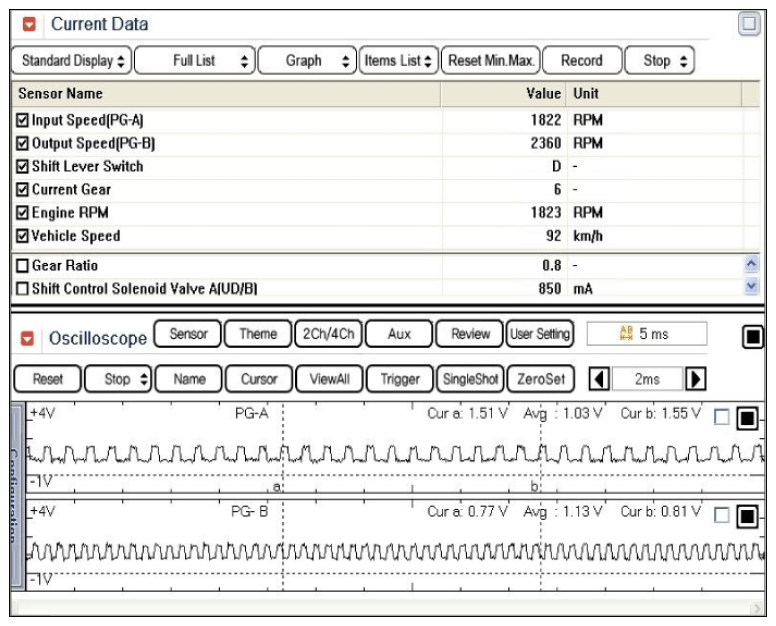

Fig 2: Display - Input/Output Speed Sensor At High Speed
G08332240Courtesy of KIA MOTORS AMERICA, INC.
