Monitor GDS Data

  1. Connect GDS to Data Link Connector(DLC).
  2. Engine start.
  3. Monitor "battery sensor" parameter on GDS.

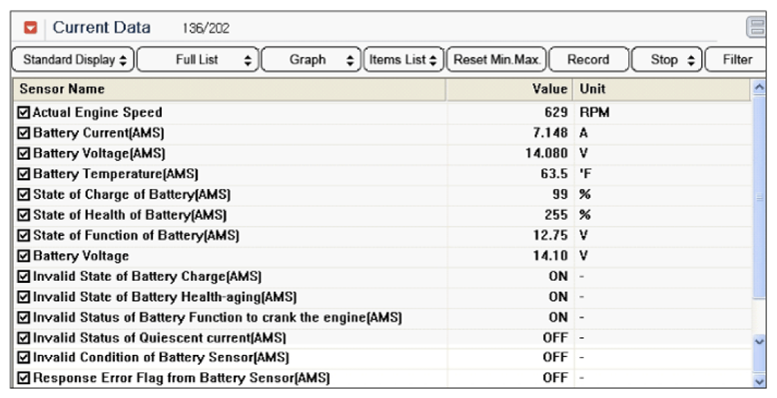

    Fig 1: Display - Battery Sensor Current Data
    G08333579Courtesy of KIA MOTORS AMERICA, INC.
  4. Are the parameters displayed correctly?

    YES

    Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    Go to "TERMINAL & CONNECTOR INSPECTION " procedure.
