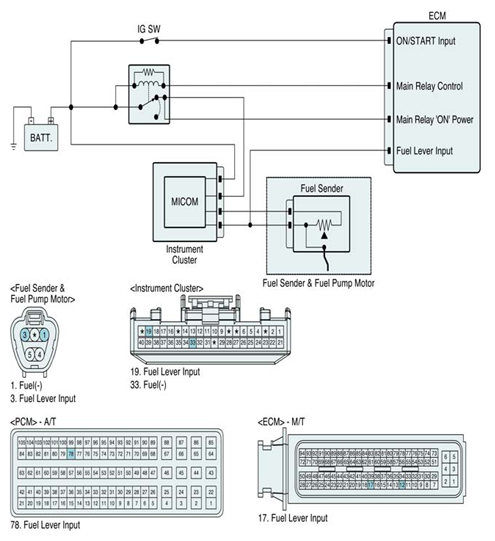

Home >> Kia >> 2013 >> Soul Base, Automatic Trans >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Engine Control System Diagnosis (2 Of 3) - 1.6L >> DTC P0463: Fuel Level Sensor 'A' Circuit High Input >> General Information >> Diagnostic Circuit Diagram
