Signal Circuit Inspection

Check short to ground in harness
1. IG "OFF" and disconnect ETC Motor & TPS connector and ECM connector.
2. Measure resistance between TPS2 signal terminal of ETC Motor & TPS harness connector and chassis ground. (Measurement "A")
3. Measure resistance between TPS2 signal and ground terminals of ETC Motor & TPS harness connector. (Measurement "B")
  Specification: Infinite

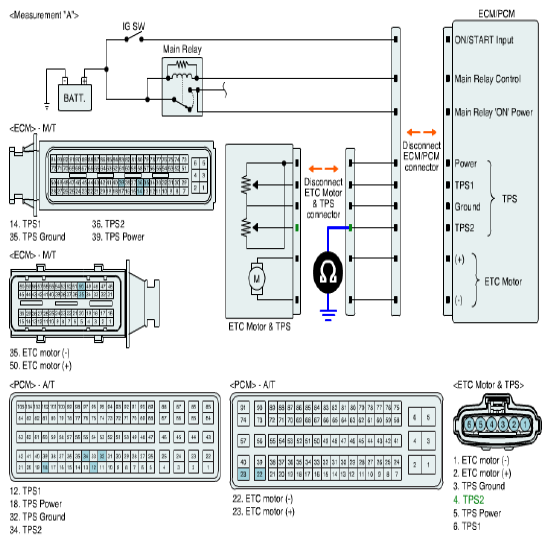

  Fig 1: Measuring Resistance Between TPS2 Signal Terminal Of ETC Motor And TPS Harness Connector And Chassis Ground (Measurement A)
  Courtesy of KIA MOTORS AMERICA, INC.

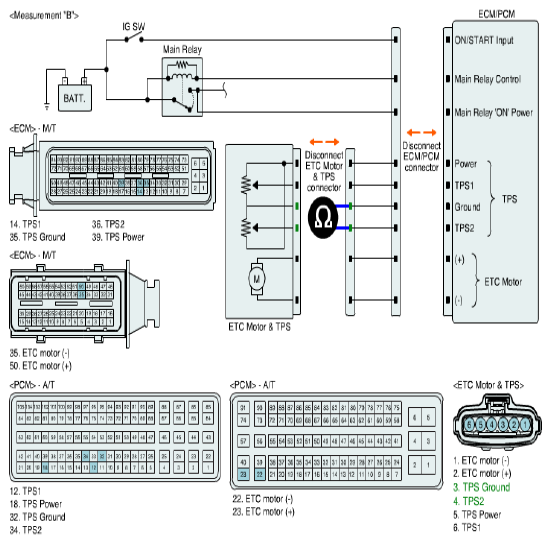

  Fig 2: Measuring Resistance Between TPS2 Signal And Ground Terminals Of ETC Motor And TPS Harness Connector (Measurement B)
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured voltage within specification?
  YES

  Go to "COMPONENT INSPECTION " procedure.

  NO

  Repair Short to ground in signal circuit and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
