Power Circuit Inspection

Check Open or Short in power circuit
1. IG "OFF" and disconnect ETC Motor & TPS connector.
2. IG "ON".
3. Measure voltage between TPS1 power terminal of ETC Motor & TPS harness connector and chassis ground.
  Specification: Approx. 5V

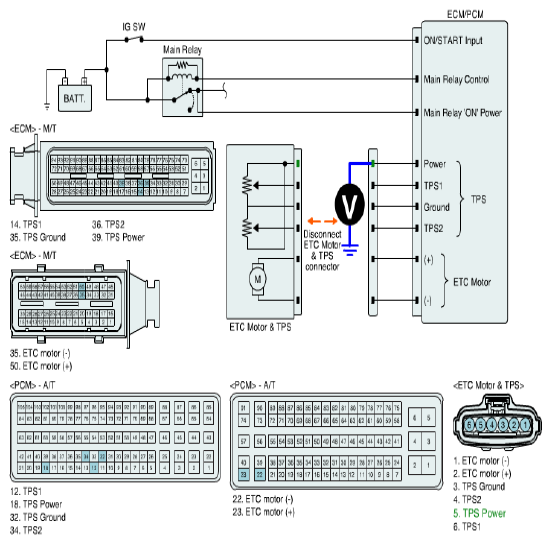

  Fig 1: Measuring Voltage Between TPS1 Power Terminal Of ETC Motor And TPS Harness Connector And Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured voltage within specification?
  YES

  Go to "SIGNAL CIRCUIT INSPECTION " procedure.

  NO

  Check for Open or Short to ground in Power circuit. Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
