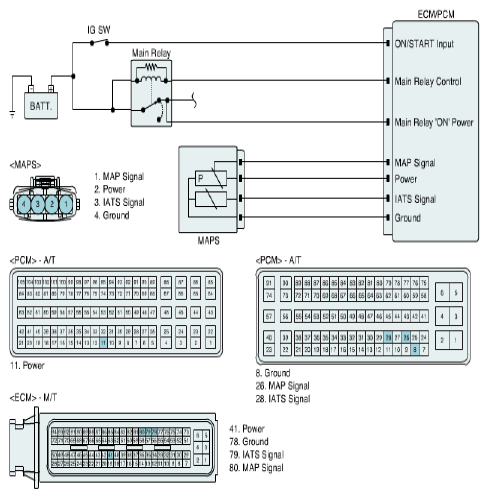

Home >> Kia >> 2013 >> Soul Base, Automatic Trans >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Engine Control System Diagnosis (1 Of 3) - 1.6L >> DTC P0111: Intake Air Temperature Sensor 1 Circuit Range / Performance >> General Information >> Diagnostic Circuit Diagram
