System
>>
Engine Control System Diagnosis (1 Of 3) - 1.6L
>>
DTC P0075: Intake Valve Control Solenoid Circuit (Bank 1)
>>
General Information
>>
Signal Waveform & Data
Signal Waveform & Data

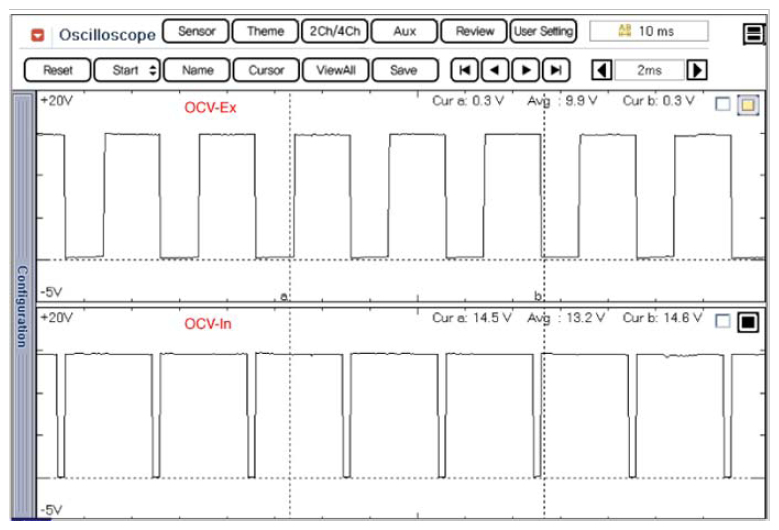

Fig 1: Display - Oil Control Valve Signal Waveform (At Idle)
Courtesy of KIA MOTORS AMERICA, INC.

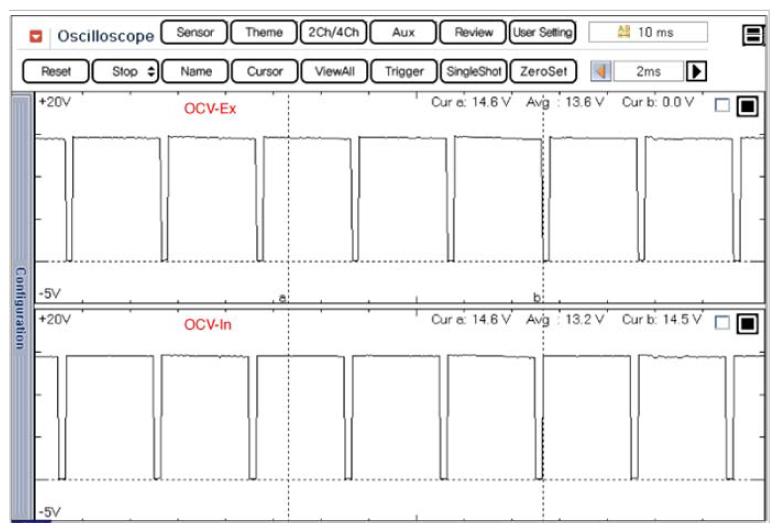

Fig 2: Display - Oil Control Valve Signal Waveform (At Acceleration)
Courtesy of KIA MOTORS AMERICA, INC.
