Transmitter Code Registration (Using GDS)

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the GDS ON.
Select the vehicle model and then do "CODE SAVING".

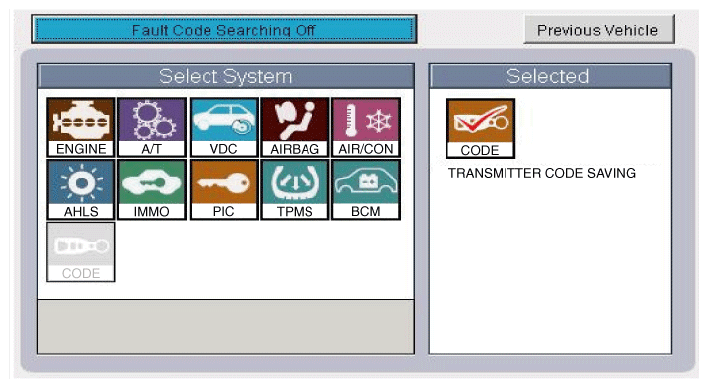

Fig 1: Display - Transmitter Code Saving Selected
Courtesy of KIA MOTORS AMERICA, INC.
After selecting "CODE SAVING" menu, button "OK" key, then the screen will be shown as below.

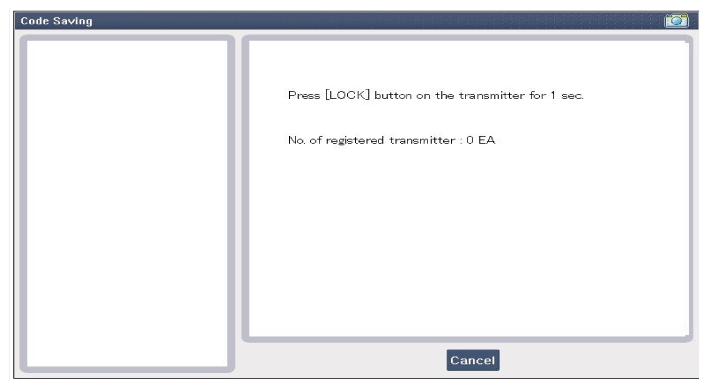

Fig 2: Display - Code Saving Method Screen
Courtesy of KIA MOTORS AMERICA, INC.
After removing the ignition key from key cylinder, push "OK" key to proceed to the next mode for code saving. Follow steps 1 to 4 and then code saving is completed.

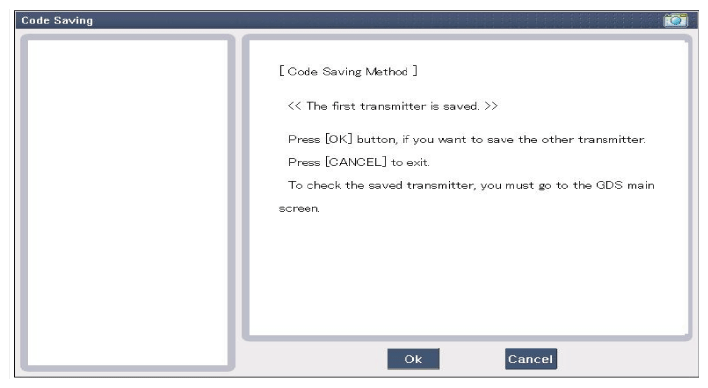

Fig 3: Display - Code Saving Screen (1 Of 9)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Display - Code Saving Screen (2 Of 9)
Courtesy of KIA MOTORS AMERICA, INC.

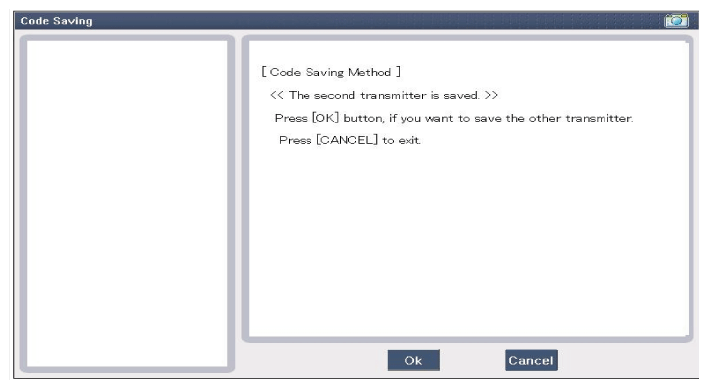

Fig 5: Display - Code Saving Screen (3 Of 9)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Display - Code Saving Screen (4 Of 9)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Display - Code Saving Screen (5 Of 9)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 8: Display - Code Saving Screen (6 Of 9)
Courtesy of KIA MOTORS AMERICA, INC.

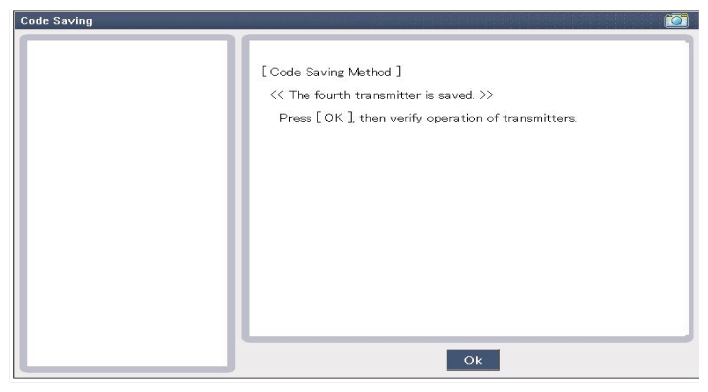

Fig 9: Display - Code Saving Screen (7 Of 9)
Courtesy of KIA MOTORS AMERICA, INC.

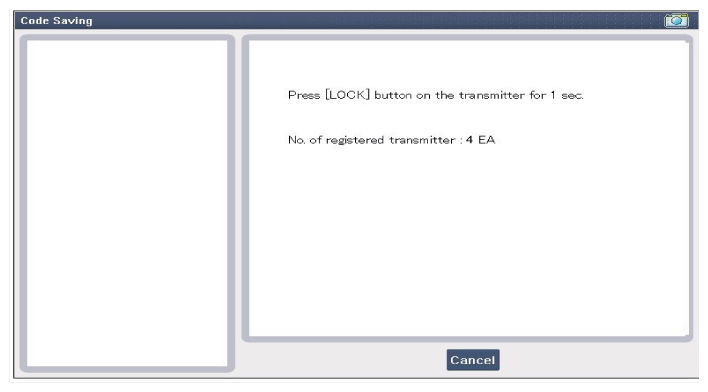

Fig 10: Display - Code Saving Screen (8 Of 9)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 11: Display - Code Saving Screen (9 Of 9)
Courtesy of KIA MOTORS AMERICA, INC.
