Soul !
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
Automatic Transaxle Control System - 2.0L
>>
Line Pressure Control Solenoid Valve
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

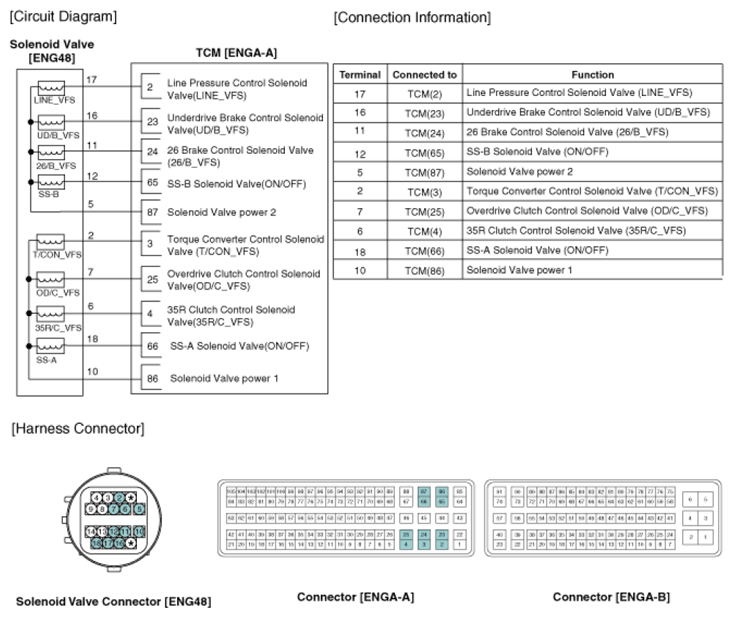

Fig 1: Solenoid Valve (ENG48) And TCM (ENGA-A) - Circuit Diagram With Connector Terminals End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
