Circuit Diagram: (A/T)

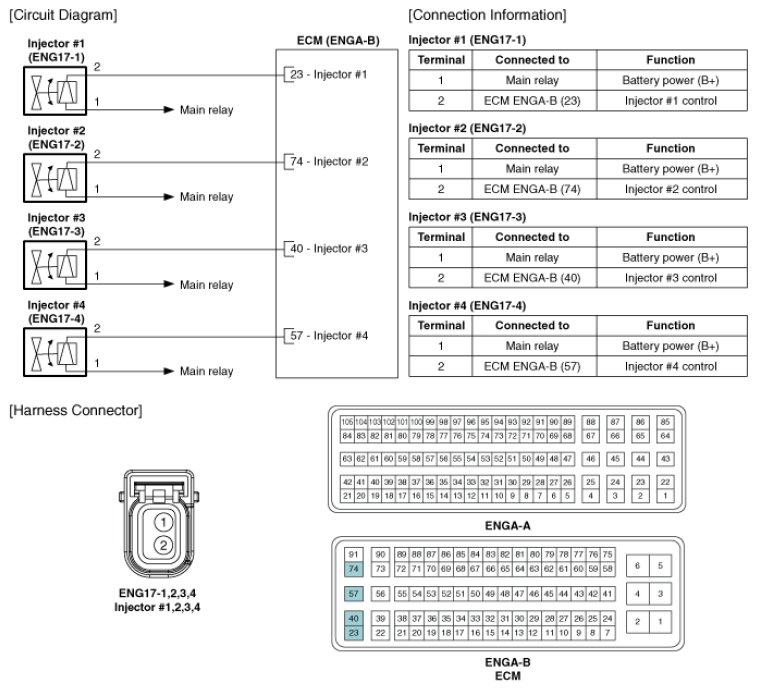

Fig 1: Injector - Circuit Diagram (A/T)

G08331078

Courtesy of KIA MOTORS AMERICA, INC.
