Signal Waveform & Data

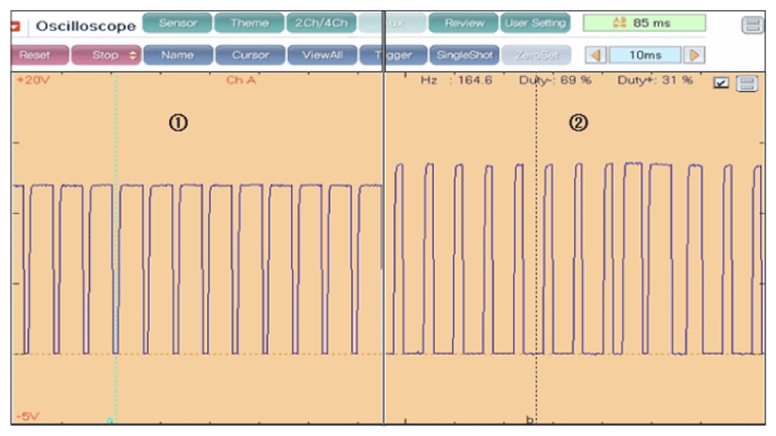

Fig 1: Alternator Signal Waveform (Normal Waveform With IG On, Idle And No Electrical Load)
G08334561Courtesy of KIA MOTORS AMERICA, INC.

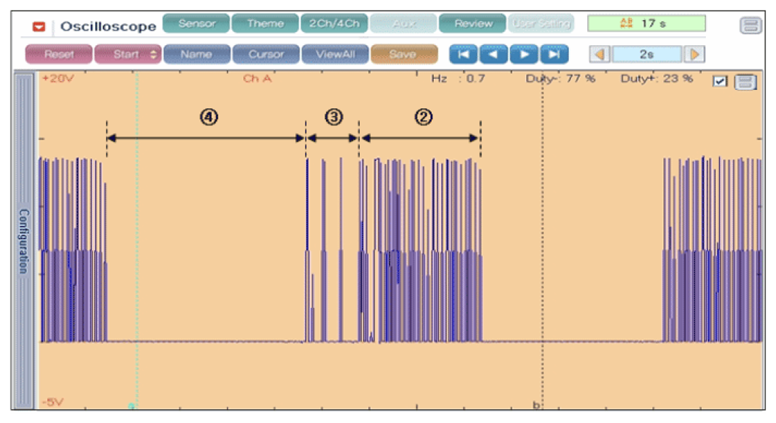

Fig 2: Alternator Signal Waveform (Normal Waveform With Idle And No, Part And Full Electrical Load)
G08334562Courtesy of KIA MOTORS AMERICA, INC.
  1. Normal waveform with IG ON
  2. Normal waveform with Idle and no electrical load
  3. Normal waveform with Idle and part electrical load
  4. Normal waveform with Idle and full electrical load(A/C, Defrost, Head Lamp, Repeater, Audio, etc)
