Repair Procedures: Replacement

WARNING: This page is about a different car, the 2014 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the cowl side trim.
(Refer to "CRASH PAD SIDE COVER REPLACEMENT ")

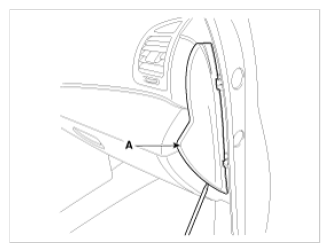

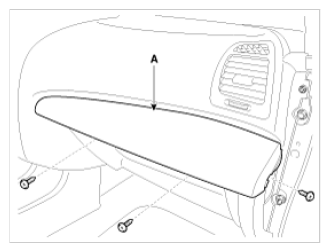

Using a screwdriver or remover, remove the crash pad side cover (A).

Fig 1: Identifying Crash Pad Side Cover
Courtesy of KIA MOTORS AMERICA, INC.

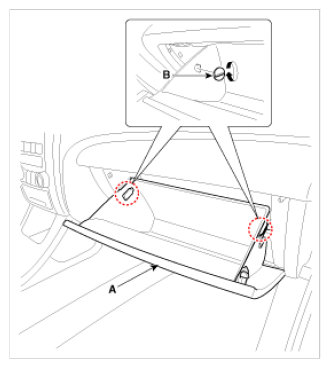

Disconnect the stopper (B) from the glove box (A).

Fig 2: Identifying Stopper And Glove Box
Courtesy of KIA MOTORS AMERICA, INC.

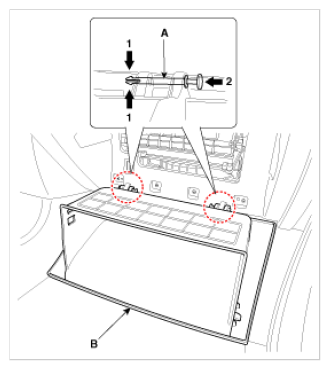

Disconnect the air damper (A) from the glove box (B).

Fig 3: Locating Air Damper
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the pins (A) and then remove the glove box (B).

Fig 4: Locating Pins Of Auto Defogging Actuator
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting screws, then remove the crash pad side garnish [RH] (A).

Fig 5: Identifying Crash Pad Side Garnish (RH)
Courtesy of KIA MOTORS AMERICA, INC.

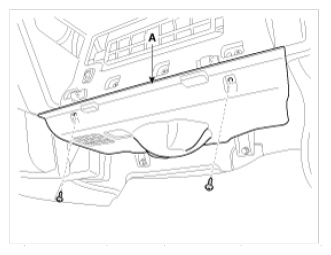

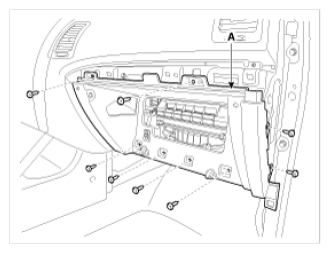

After loosening the mounting screws, then remove the crash pad under cover (A).

Fig 6: Identifying Crash Pad Under Cover
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting screws, then remove the glove box housing (A).

Fig 7: Identifying Glove Box Housing
Courtesy of KIA MOTORS AMERICA, INC.

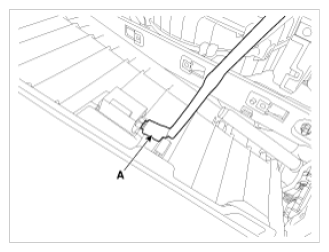

Disconnect the glove box lamp connector (A).

Fig 8: Identifying Glove Box Lamp Connector
Courtesy of KIA MOTORS AMERICA, INC.

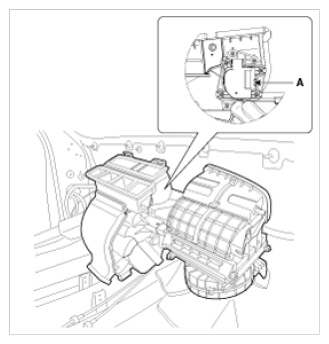

Disconnect the connector and then remove the auto defogging actuator (A) after loosening the mounting screws.

Fig 9: Identifying Auto Defogging Actuator
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
