Monitor GDS Data

Connect GDS to Data Link Connector(DLC).
Ignition "ON" & Engine "ON".
Selet "Current Data" mode and monitor "SPORTS MODE SELECT S/W, SPORTS MODE UP S/W, SPORTS MODE DOWN S/W" parameters.
Change shift lever to "Sports Mode".

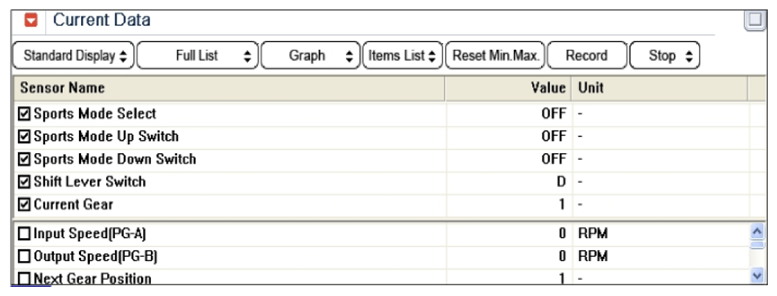

Fig 1: Display - Sports Mode Select S/W, Up S/W And Down S/W Current Data (D Range)
Courtesy of KIA MOTORS AMERICA, INC.

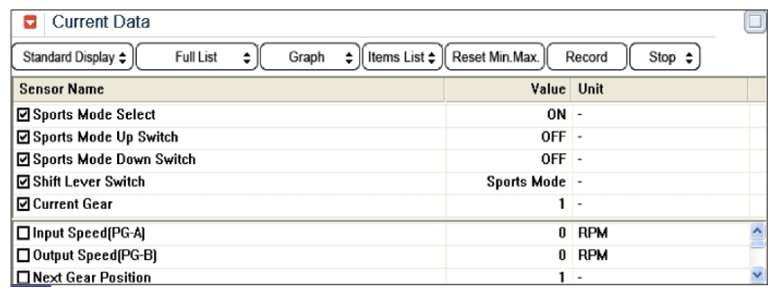

Fig 2: Display - Sports Mode Select S/W, Up S/W And Down S/W Current Data (Sports Mode On)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Display - Sports Mode Select S/W, Up S/W And Down S/W Current Data (Sports Mode Up Switch On)
Courtesy of KIA MOTORS AMERICA, INC.

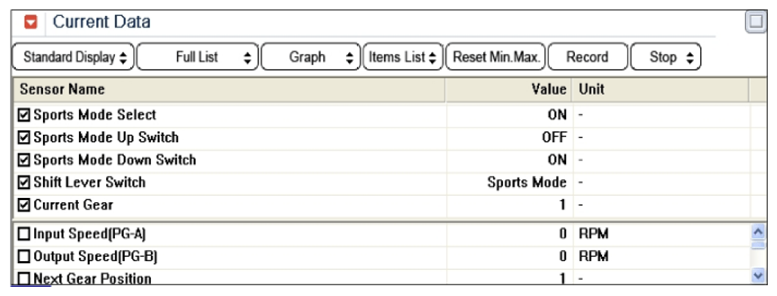

Fig 4: Display - Sports Mode Select S/W, Up S/W And Down S/W Current Data (Sports Mode Down Switch On)
Courtesy of KIA MOTORS AMERICA, INC.
Is Sports Mode Switch working within specification?
YES

Fault is intermittent caused by poor contact between PCM and Sensor, and DTC was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

NO

Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
