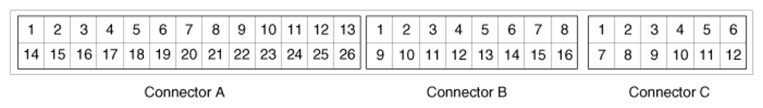

BCM connectors
| Pin No. | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | Battery (+) | K_LINE | Turn signal switch (RH) |
| 2 | Ignition 2 | Central door lock/unlock switch | Turn signal switch (LH) |
| 3 | Ignition 1 | RPAS OFF switch | Parking brake switch |
| 4 | Tailgate handle switch | Hazard switch | Auto light switch |
| 5 | Driver door key unlock switch | Power window unlock switch | - |
| 6 | Driver door key lock switch | Power window lock switch | Ground 3 |
| 7 | Tail lamp switch | Wiper intermittent volume | CAN_H |
| 8 | Seat belt switch | LIN | CAN_L |
| 9 | Assist seat belt switch | Head lamp low switch | Auto light power |
| 10 | Front fog lamp switch | Door enable | Auto right signal |
| 11 | Rear fog lamp switch | Crash input | Burglar horn relay |
| 12 | Head lamp high switch | Defogger switch | Burglar alarm relay |
| 13 | Ground 1 | Washer switch | |
| 14 | Rear left door switch | Wiper mist switch | |
| 15 | Rear left door unlock switch | Wiper intermittent switch | |
| 16 | Inhibit "R" | Rear washer switch | |
| 17 | Key IN switch | ||
| 18 | ACC | ||
| 19 | Hood switch | ||
| 20 | Driver door unlock switch | ||
| 21 | Assist door unlock switch | ||
| 22 | Rear right door unlock switch | ||
| 23 | Driver door switch | ||
| 24 | Assist door switch | ||
| 25 | Rear right door switch | ||
| 26 | Tailgate switch |
| Pin No. | Connector D | Connector E |
|---|---|---|
| 1 | Power window relay | Static bend power |
| 2 | Assist seat belt indicator | Static bend (RH) |
| 3 | Room lamp | Turn power |
| 4 | Rear wiper relay | Rear right turn signal |
| 5 | Tail lamp relay | Rear left turn signal |
| 6 | Head lamp relay | Front right turn signal |
| 7 | Head lamp high relay | Front left turn signal |
| 8 | Front fog lamp relay | Rear left seat belt switch |
| 9 | Rear fog lamp relay | Center seat belt switch |
| 10 | Rear deicer relay | Rear right seat belt switch |
| 11 | - | Assist door key unlock switch |
| 12 | AV tail | Interior lamp power |
| 13 | Navigation wake up | Interior lamp output |
| 14 | Wiper relay | Static bend (LH) |
| 15 | Hazard indicator | Break switch |
| 16 | RPAS OFF indicator | Central door lock indicator |
| 17 | Ground 2 | Rear wiper switch |
| 18 | Door lock relay | Rear wiper INT switch |
| 19 | Door unlock relay | Head lamp low control |
| 20 | Dead lock relay | AT solenoid |
| 21 | Tailgate unlock relay | Side air bag option |
| 22 | Key hole illumination | Rear right seat belt indicator |
| 23 | Center seat belt indicator | |
| 24 | Rear left seat belt indicator | |
| 25 | Dedicated DRL output | |
| 26 | Dedicated DRL power |
