Circuit Diagram: (A/T)

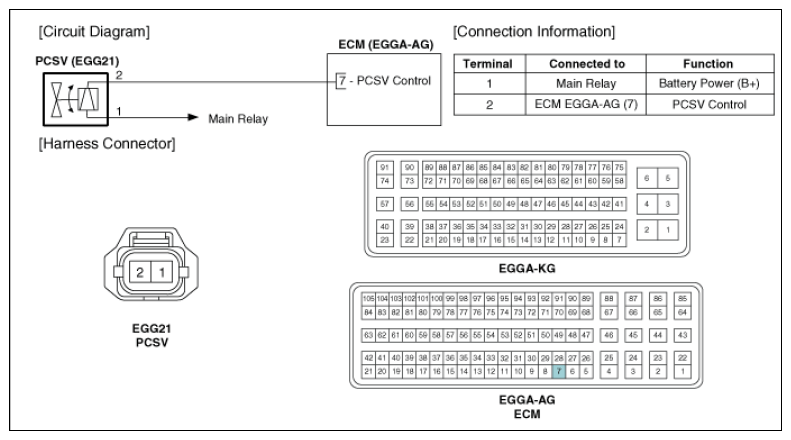

Fig 1: Purge Control Solenoid Valve - Circuit Diagram (A/T)

G08321461

Courtesy of KIA MOTORS AMERICA, INC.
