Repair procedures: Installation

Apply soap powder on the shaft to prevent being damaged between the shaft spline and the dynamic damper.
Install the dynamic damper.
Install the dynamic damper band.
Using the SST(09495-3K000), secure the TJ boot bands (A).
Clearance (A): 2.0 mm (0.079 in) or less

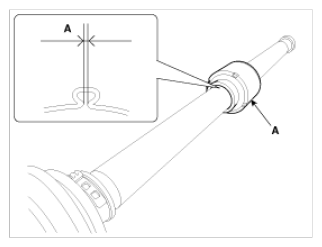

Fig 1: Securing TJ Boot Bands Using SST(09495-3K000)
Courtesy of KIA MOTORS AMERICA, INC.
Install the TJ joint assembly. (Refer to DS group - "TJ JOINT ")
Install the front driveshaft. (Refer to DS group - "FRONT DRIVESHAFT ")
