Repair procedures: Replacement

  1. Remove the front driveshaft. (Refer to DS group - "FRONT DRIVESHAFT ")
  2. Remove the TJ joint assembly. (Refer to DS group - "TJ JOINT ")
  3. Remove the Dynamic damper. (Refer to DS group - "DYNAMIC DAMPER ")
  4. Using a plier or flat-tipped (-) screwdriver, remove the BJ boot bands (A).

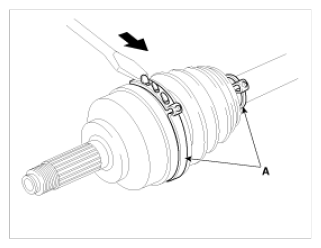

    Fig 1: Removing BJ Boot Bands Using Flat-Tipped Screwdriver
    G08321862Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the BJ boot.
  6. Install in the reverse order of removal.
    CAUTION:
    • Do not disassemble the BJ assembly.
    • Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease.
    • The boot band should be replaced with a new one.
