Component Inspection

longitudinal G sensor Calibration
1. IG ON, ENG OFF.
2. Stand the vehicle on a flat ground without any inclination.
3. Set the steering wheel at the center position.
4. Keep the vehicle under normal tire pressure condition and normal loading condition.
5. Connect GDS to Data Link Connector(DLC).
6. Perform Longitudinal G Sensor Calibration (Fig 1).

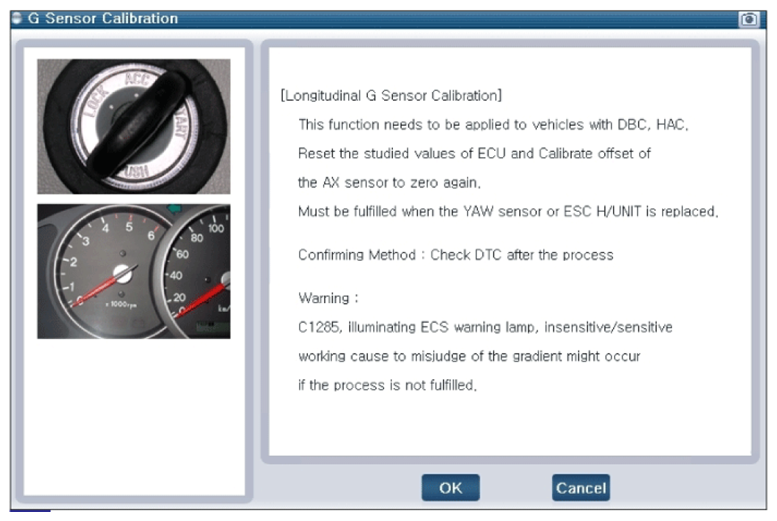

  Fig 1: Display - Longitudinal G Sensor Calibration Screen
  Courtesy of KIA MOTORS AMERICA, INC.
7. Is "Longitudinal sensor's calibration" completed normally?
  YES

  Go to "VERIFICATION OF VEHICLE REPAIR " procedure.

  NO

  Substitute with a known-good Yaw rate sensor and check for proper operation.

  If problem is corrected, replace Yaw rate sensor and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
