Monitor GDS Data

Check parking position switch status
1. Connect GDS with diagnostic connector.
2. Check current data with GDS.
3. Check "Shift lever P position" parameter on current data.
4. Check that data is appropriately changeable according to the shift lever position in P or others.
  Specification:

  P position: ON

  Not in P position: OFF

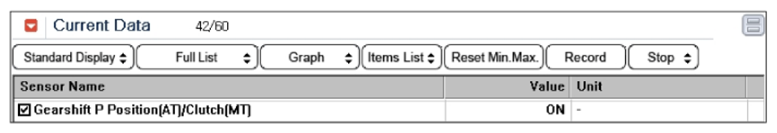

  Fig 1: Display - Gearshift P Position (AT)/Clutch (MT) Current Data
  Courtesy of KIA MOTORS AMERICA, INC.
5. Is the shift lever P position normal?
  YES

  Check poor connection between harness connector and Parking Position switch or SMK Unit: Thoroughly check the looseness, poor connection, bent, corrosion, contamination, deformation or damage of connector. Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.

  NO

  Go to "INSPECTION & REPAIR " procedure.
