Description and Operation: Description: Notes

The immobilizer system will disable the vehicle unless the proper ignition key is used, in addition to the currently available anti-theft systems such as car alarms, the immobilizer system aims to drastically reduce the rate of auto theft.

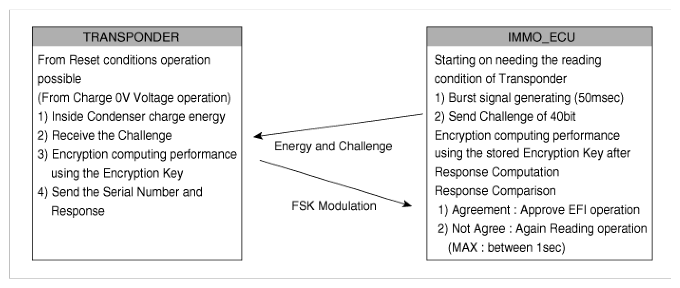

  1. Transponder (TP) - IMMO ECU Communication
    Fig 1: Transponder (TP) - IMMO ECU Communication
    G08323200Courtesy of KIA MOTORS AMERICA, INC.
