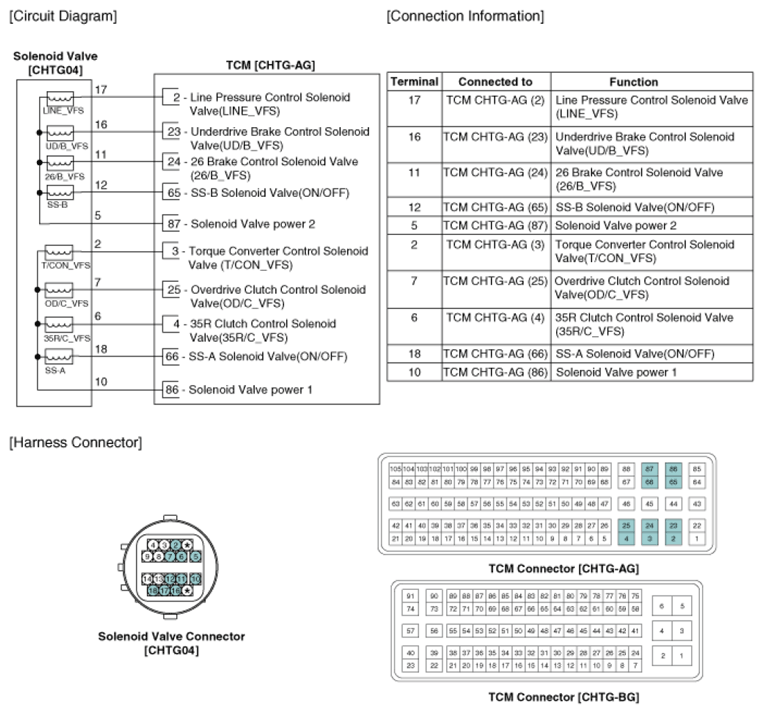

Home >> Kia >> 2013 >> Optima SX >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System - 2.0L >> Line Pressure Control Solenoid Vale >> Schematic Diagrams >> Circuit Diagram
