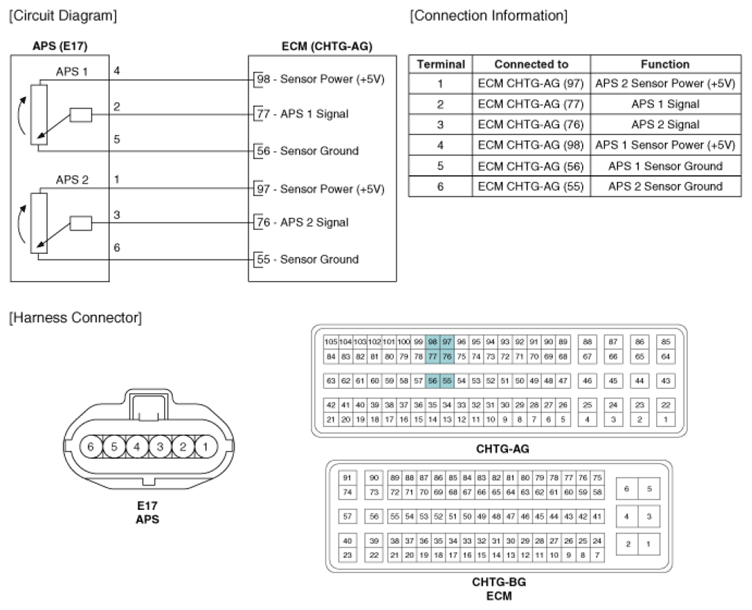

Home >> Kia >> 2013 >> Optima SX >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L >> Accelerator Position Sensor (APS) >> Schematic Diagrams >> Circuit Diagram
