Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON" & Engine "OFF".
  3. Select "Current Data" mode and monitor "Inhibitor switch" parameter.
  4. Change a shift lever from P-range to D-range.

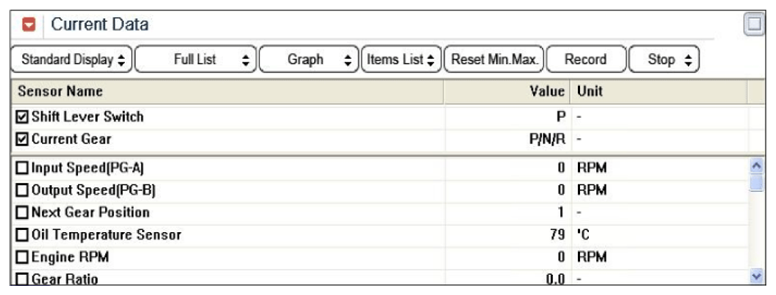

    Fig 1: Monitoring Inhibitor Switch Parameter (P Range)
    G07385273Courtesy of KIA MOTORS AMERICA, INC.

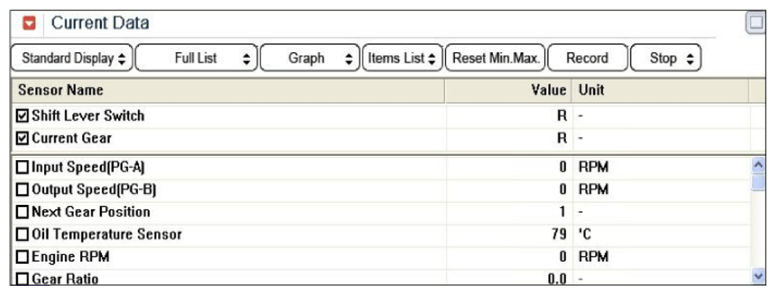

    Fig 2: Monitoring Inhibitor Switch Parameter (R Range)
    G07385274Courtesy of KIA MOTORS AMERICA, INC.

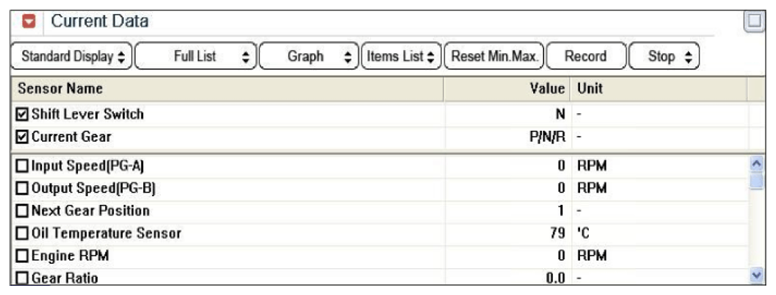

    Fig 3: Monitoring Inhibitor Switch Parameter (N Range)
    G07385275Courtesy of KIA MOTORS AMERICA, INC.

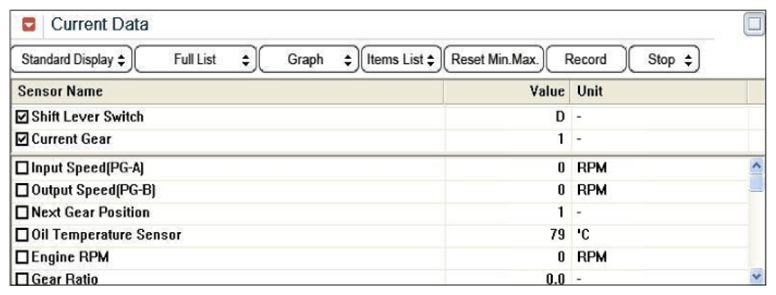

    Fig 4: Monitoring Inhibitor Switch Parameter (D Range)
    G07385276Courtesy of KIA MOTORS AMERICA, INC.
  5. Is the Inhibitor switch value changed in specification?

    YES

    • Fault is intermittent caused by poor contact of PCM/TCM and DTC was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to VERIFICATION OF VEHICLE REPAIR  procedure.

    NO
