Smart Key Control Module Connector End View (M13-D)

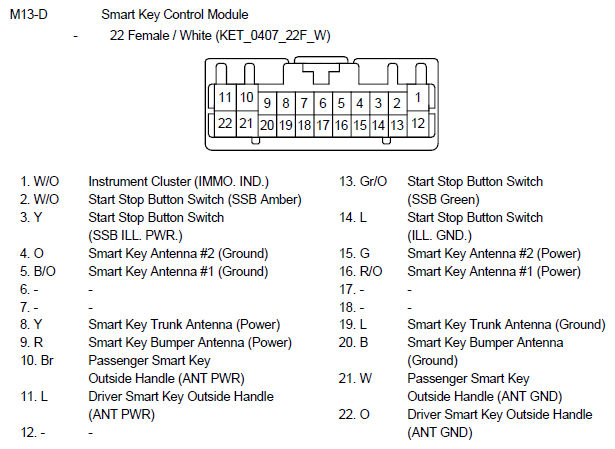

Fig 1: Smart Key Control Module Connector End View (M13-D)

G10798534

Courtesy of KIA MOTORS AMERICA, INC.
