SRS Control Module Connector End View (M60)

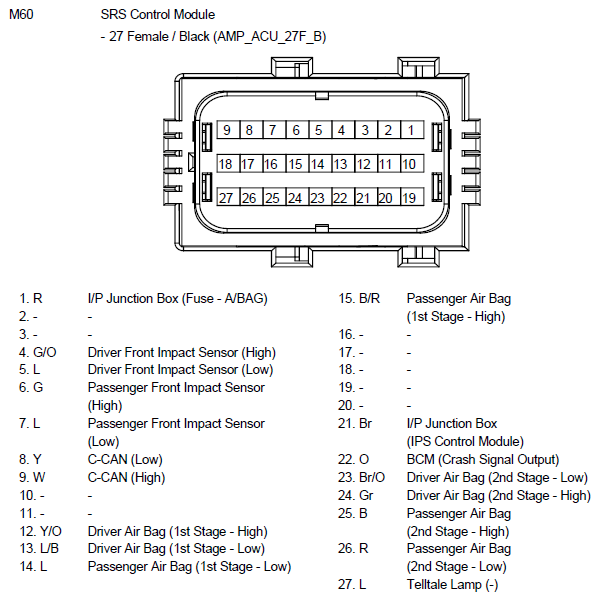

Fig 1: SRS Control Module Connector End View (M60)

G10798572

Courtesy of KIA MOTORS AMERICA, INC.
