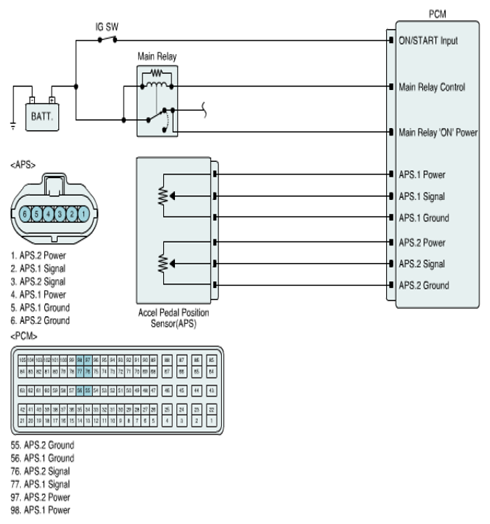

Home >> Kia >> 2013 >> Optima SX >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Engine Control System Diagnosis (3 Of 3) - 2.0L >> DTC P2123: Throttle Pedal Position Sensor Switch 'D' Circuit High Input >> General Information >> Diagnostic Circuit Diagram
