Engine Control System Diagnosis (1 Of 3) - 2.0L
>>
DTC P0091: Fuel Pressure Regulator 1 Control Circuit Low
>>
General Information
>>
Signal Waveform & Data
Signal Waveform & Data

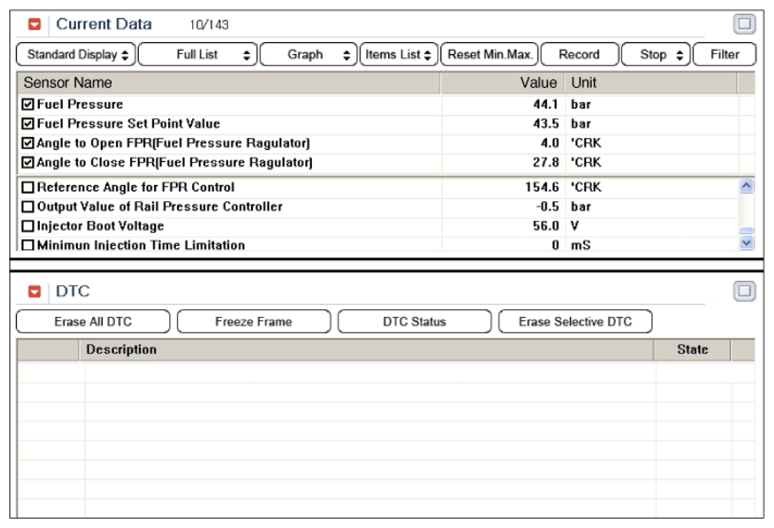

Fig 1: Screen Display - Fuel Pressure Data (Normal Idle State)
Courtesy of KIA MOTORS AMERICA, INC.
Normal idle state.

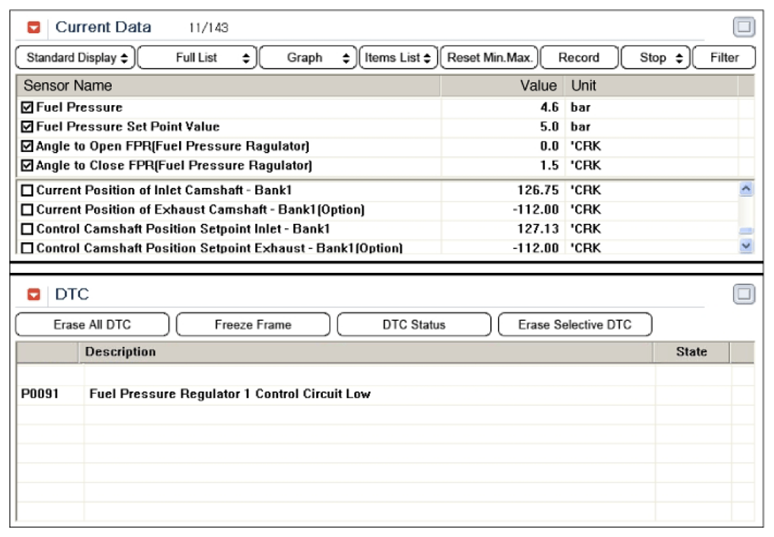

Fig 2: Screen Display - Fuel Pressure Data (FPR Circuit Shorts To Ground)
Courtesy of KIA MOTORS AMERICA, INC.
When FPR circuit shorts to ground.
