A/C Control Module (Auto - With Auto Defogger) Connector End View (M21-C)

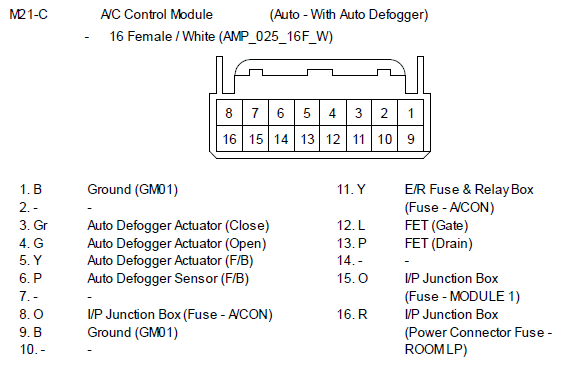

Fig 1: A/C Control Module (Auto - With Auto Defogger) Connector End View (M21-C)

G10799174

Courtesy of KIA MOTORS AMERICA, INC.
