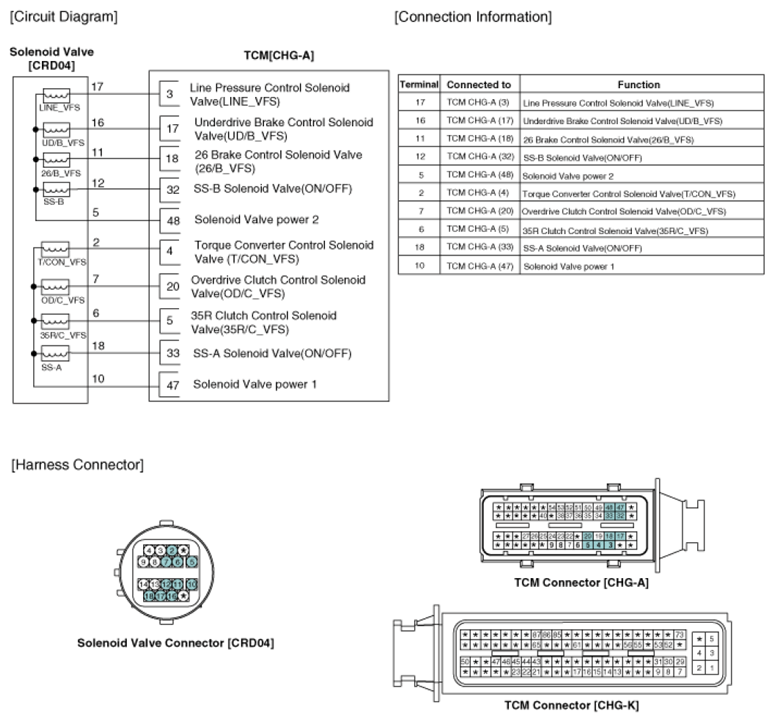

Home >> Kia >> 2013 >> Forte Koup SX, Automatic Trans >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System >> Underdrive Brake Control Solenoid Valve (UD/B_VFS) >> Schematic Diagrams >> Circuit Diagram
