Repair procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crashpad lower panel. (refer to LOWER PANEL REPLACEMENT )
  3. Disconnect the connector and then remove the blower resistor (A).

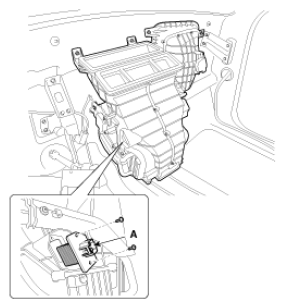

    Fig 1: Identifying Blower Resistor And Mounting Screws
    G08329638Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse order of removal.
