Repair procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crashpad lower cover.

    Refer to "CRASH PAD ")

  3. Disconnect the connector (A) of the blower motor.
  4. Remove the blower motor (B) after loosening the mounting screws.

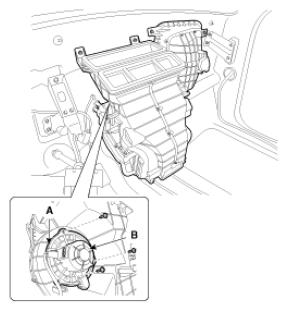

    Fig 1: Identifying Blower Motor, Connector And Mounting Screws
    G08329634Courtesy of KIA MOTORS AMERICA, INC.
  5. Installation is the reverse order of removal.
