Circuit Diagram: (M/T)

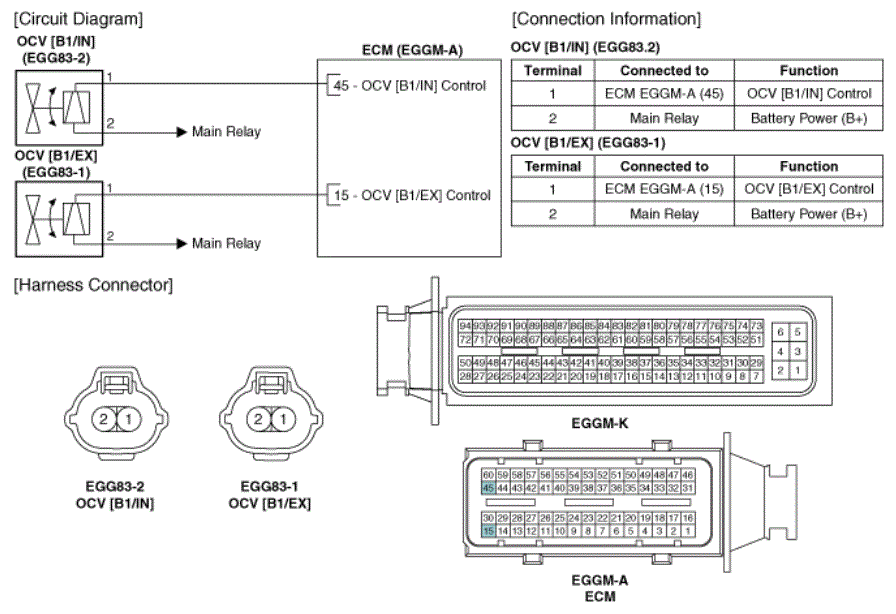

Fig 1: Continuous Variable Valve Timing - Circuit Diagram (M/T)

G08328016

Courtesy of KIA MOTORS AMERICA, INC.
