Circuit Diagram: (A/T)

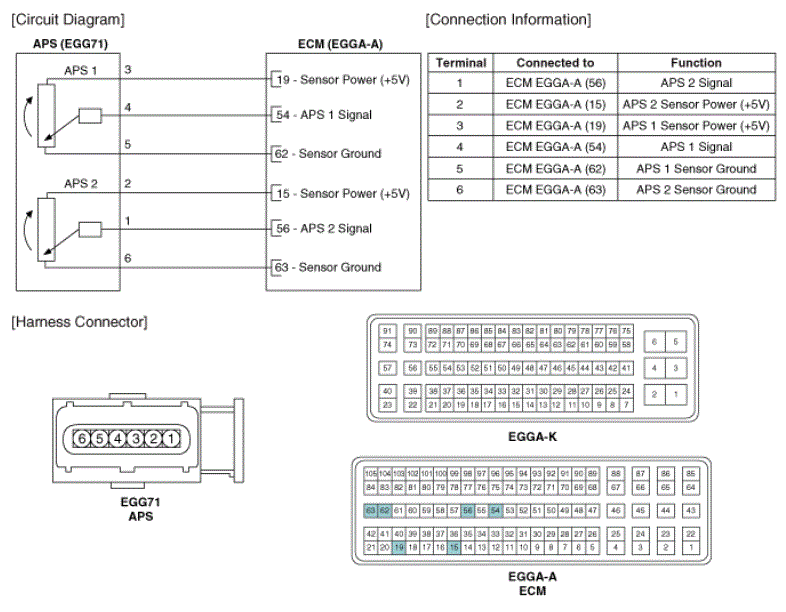

Fig 1: Accelerator Position Sensor - Circuit Diagram (A/T)

G08327990

Courtesy of KIA MOTORS AMERICA, INC.
