Home >> Kia >> 2012 >> Soul Base, Standard >> Repair and Diagnosis >> Drivelines & Axles >> Axle Shafts >> Driveshaft Assembly >> Front Driveshaft >> Components and Components Location >> Components

Components and Components Location: Components

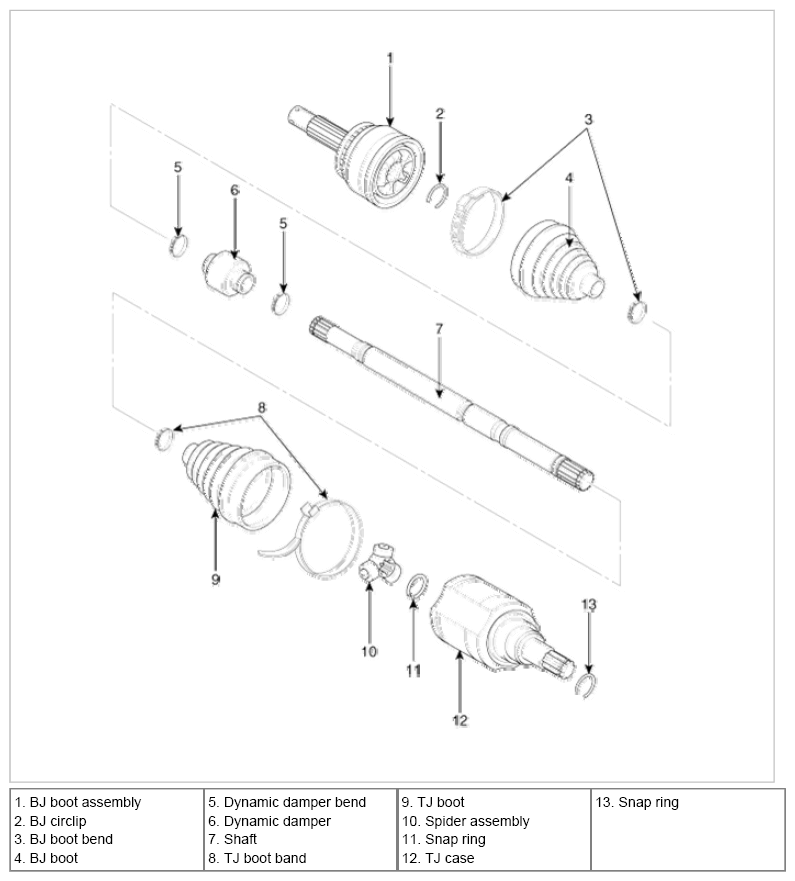

Fig 1: Identifying Front Driveshaft Components

G08328384

Courtesy of KIA MOTORS AMERICA, INC.
