Signal Circuit Inspection

Check short to ground in harness
1. IG "OFF" and disconnect ETC Motor & TPS connector.
2. IG "ON".
3. Measure voltage between TPS1 power terminal of ETC Motor & TPS harness connector and chassis ground.
  Specification: Approx. 5V

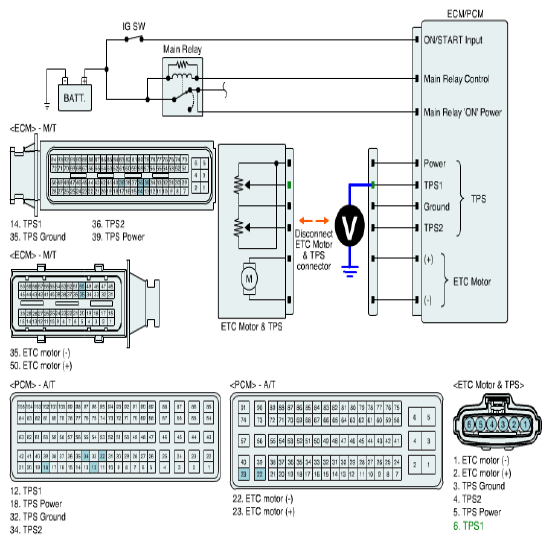

  Fig 1: Measuring Voltage Between TPS1 Power Terminal Of ETC Motor And TPS Harness Connector And Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured voltage within specification?
  YES

  Go to "COMPONENT INSPECTION " procedure.

  NO

  Repair Short to ground in signal circuit and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
