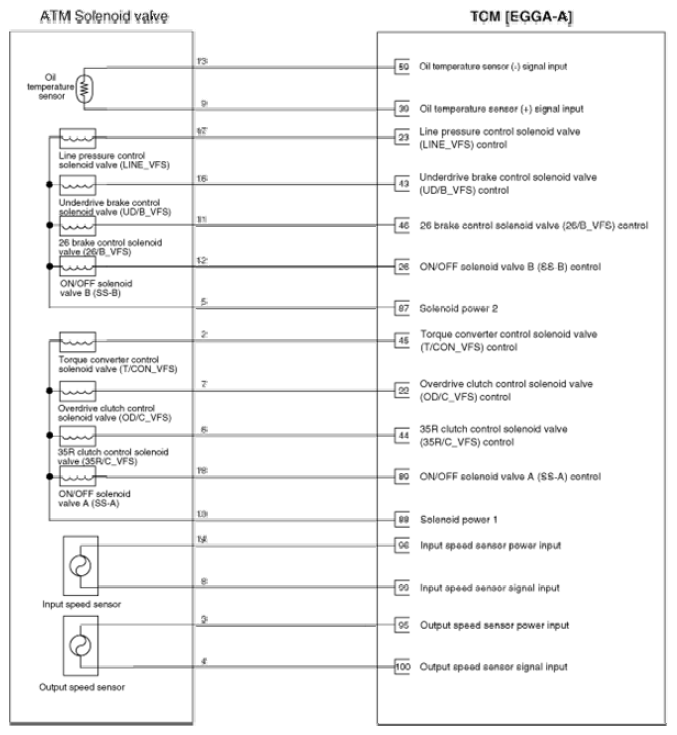

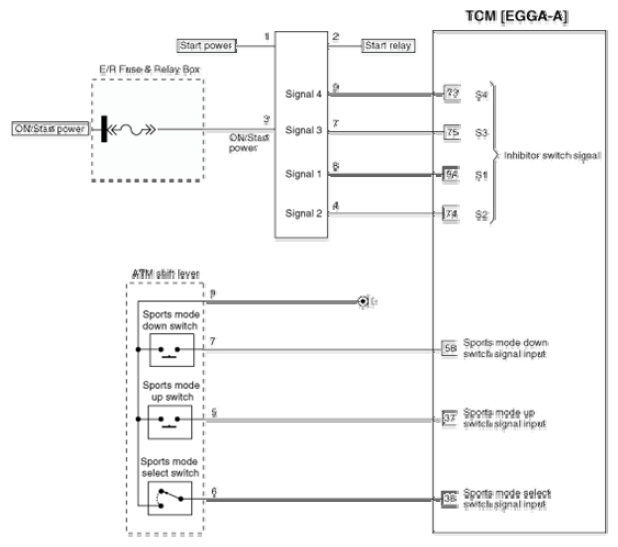

Home >> Kia >> 2012 >> Soul Base, Automatic >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System - 1.6L >> Components and Components Location >> Transaxle Control Module (TCM) >> Schematic Diagrams >> Circuit Diagram
