Repair Procedures: Removal

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Detach the lamp lens (A) from the room lamp with a flat-tip screwdriver.

Fig 1: Identifying Room Lamp Lens
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Take care not to damage the part (B).
Loosen the fixing screws (2 EA).
Remove the room lamp assembly (A) after disconnecting the connector (B).

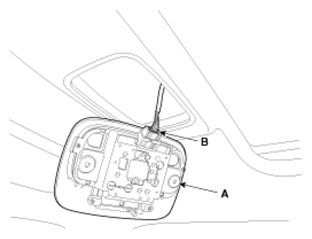

Fig 2: Identifying Room Lamp Assembly & Connector

Courtesy of KIA MOTORS AMERICA, INC.
