Repair Procedures: Removal

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Loose screws (2 EA) holding the rear combination lamp then disconnect the connector (A) then remove the outside rear combination lamp (B).

Fig 1: Identifying Outside Rear Combination Lamp & Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.

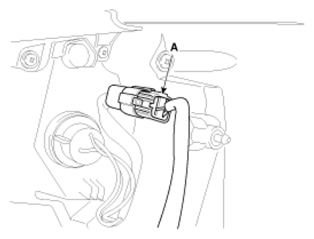

Fig 2: Identifying Rear Combination Lamp Connector
Courtesy of KIA MOTORS AMERICA, INC.
Turn the socket counterclockwise to remove the tail/stop lamp bulb (A).

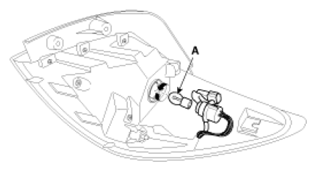

Fig 3: Identifying Tail/Stop Lamp Bulb
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the nuts (A) after removing the tailgate lamp cover.

Fig 4: Identifying Tailgate Lamp Connector & Mounting Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the tailgate lamp after disconnecting the connector (B).
Turn the socket counterclockwise to remove the back up lamp bulb (A) and tail lamp bulb (B).

Fig 5: Identifying Back Up & Tail Lamp Bulbs
Courtesy of KIA MOTORS AMERICA, INC.
If the bulbs should be only replaced without removing lamp assembly, replace the back up lamp bulb (A) and tail lamp bulb (B) after removing the tailgate lamp cover inside tailgate.
