Pressure Side Impact Sensor

WARNING: This page is about a different car, the 2011 Hyundai Veracruz. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Removal of the airbag must be performed according to the precautions/procedures described previously.
  • Before disconnecting the side impact sensor connector(s), disconnect the side airbag connector(s).
  • Do not turn the ignition switch ON and do not connect the battery cable while replacing the side impact sensor.
  1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
  2. Remove the front door trim. (Refer to DOOR TRIM REPLACEMENT .
  3. Disconnect the pressure side impact sensor connector and remove the pressure side impact sensor mounting screws.

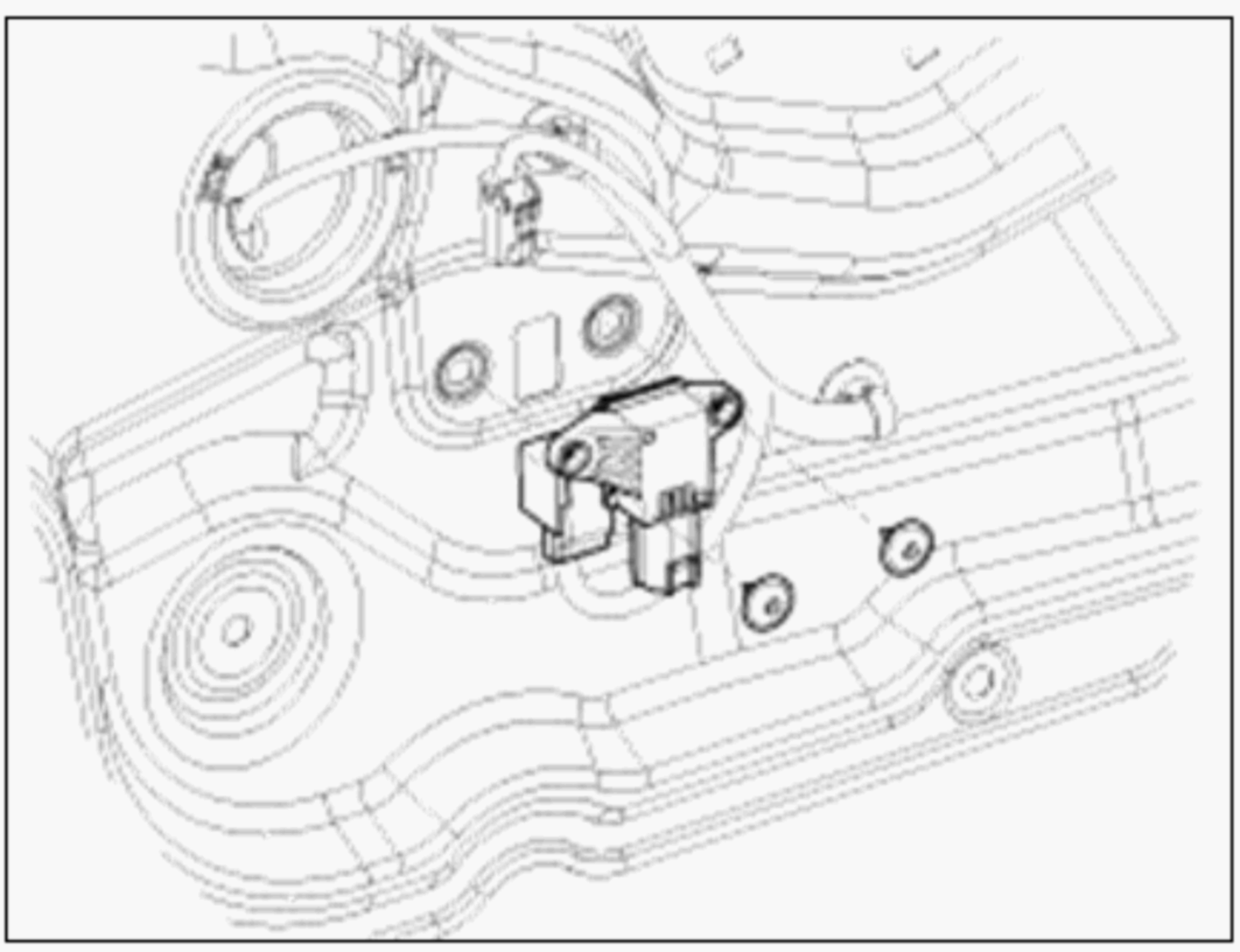

    4. Fig 1: Identifying Side Impact Sensor
    G00517327Courtesy of HYUNDAI MOTOR CO.
