Circuit Diagram (1)

WARNING: This page is about a different car, the 2011 Hyundai Veracruz. However, it is still accessible from the selected car via links, so may be relevant.

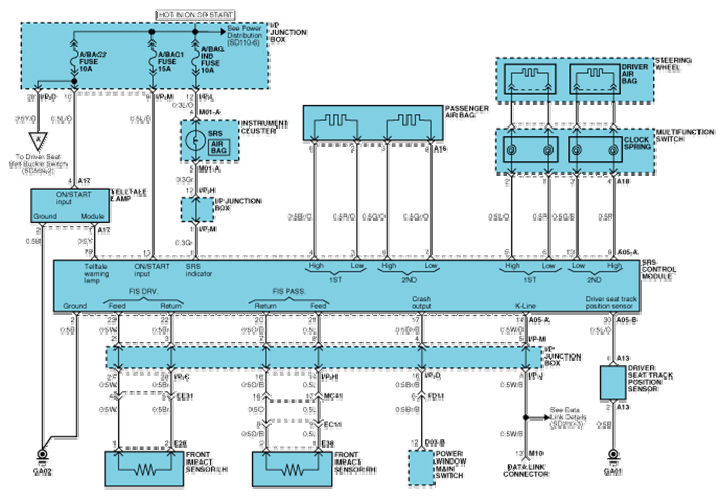

Fig 1: SRS Control Module - Circuit Diagram (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.
