Luggage Side Trim Replacement

WARNING: This page is about a different car, the 2011 Hyundai Veracruz. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Put on gloves to protect your hands.
  • When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damaged.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the rear seat.
  2. Remove the rear seat belt lower anchor.
  3. After loosening the mounting screws, then remove the luggage side trim.
  4. Installation is the reverse of removal.

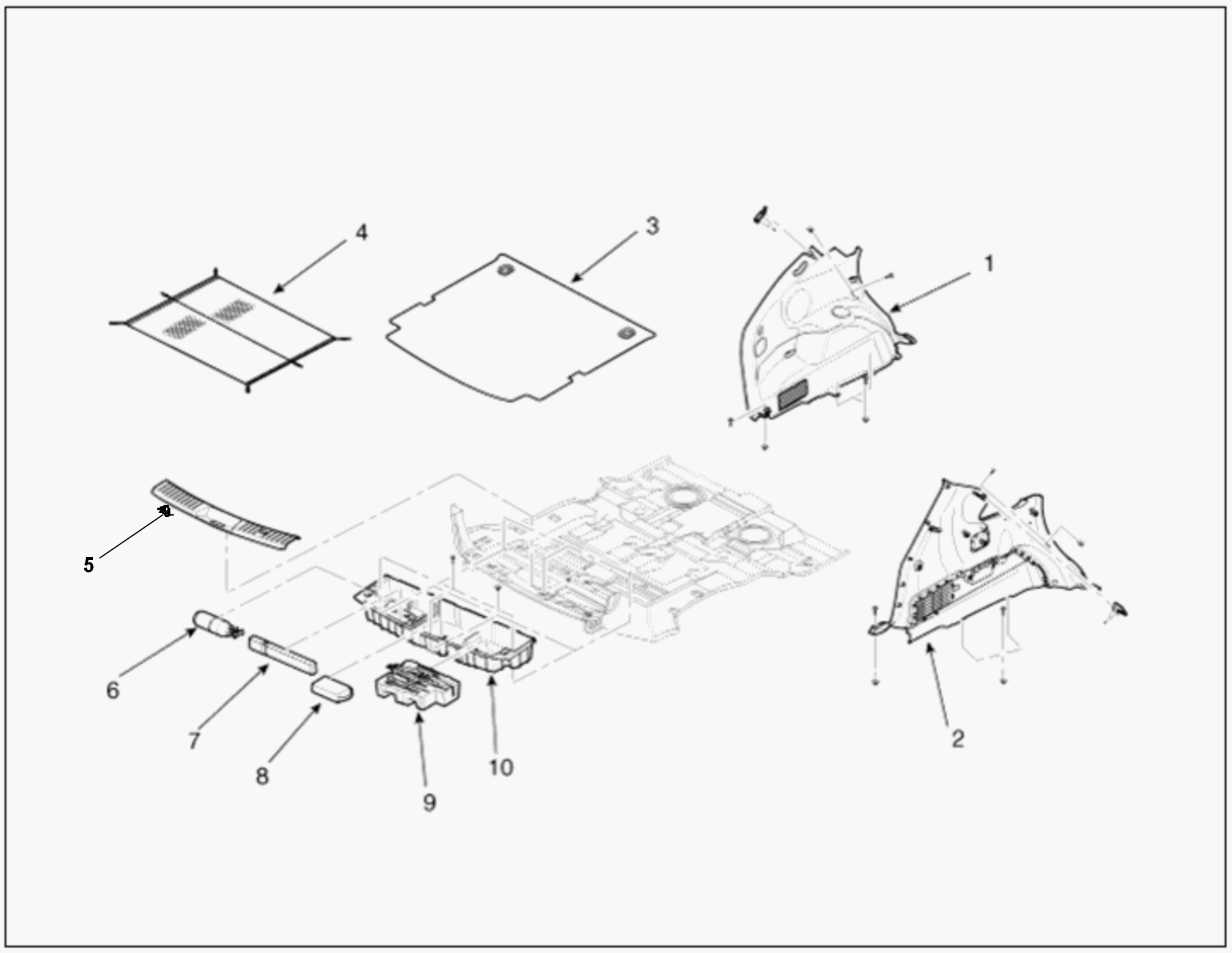

    Fig 1: Identifying Luggage Side Trim Components
    G00517332Courtesy of HYUNDAI MOTOR CO.
    1. Luggage side trim
    2. Luggage side trim
    3. Luggage floor mat
    4. Luggage floor net
    5. Rear transverse trim
    6. Extinguisher
    7. Tripod
    8. Aid
    9. OVM tool
    10. Luggage floor box
