Repair Procedures: Adjustment

  1. After loosening the tailgate hinge (A) mounting bolt, adjust the tailgate by moving it up or down, or right or left.
  2. Adjust the tailgate fit by turning the tailgate over slam bumper and side bumper.
  3. Adjust the striker (D) by moving it up or down, or right or left.

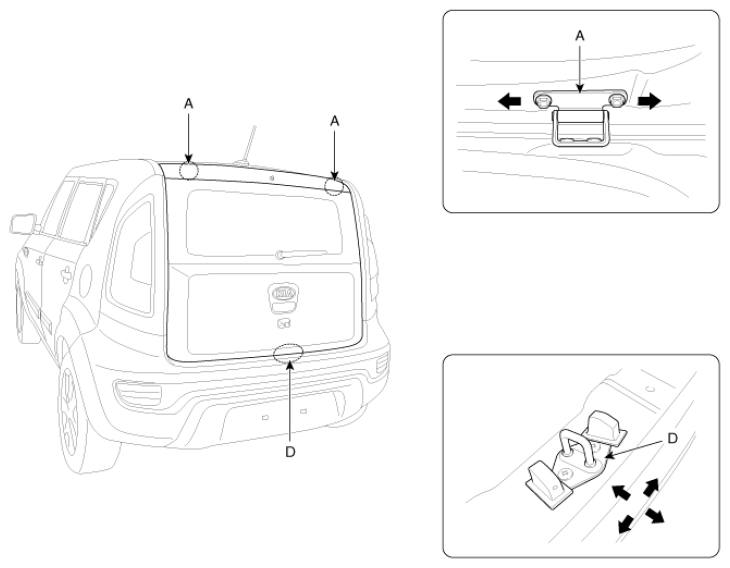

Fig 1: Adjusting Tailgate Striker
G08328671Courtesy of KIA MOTORS AMERICA, INC.
