Circuit Diagram

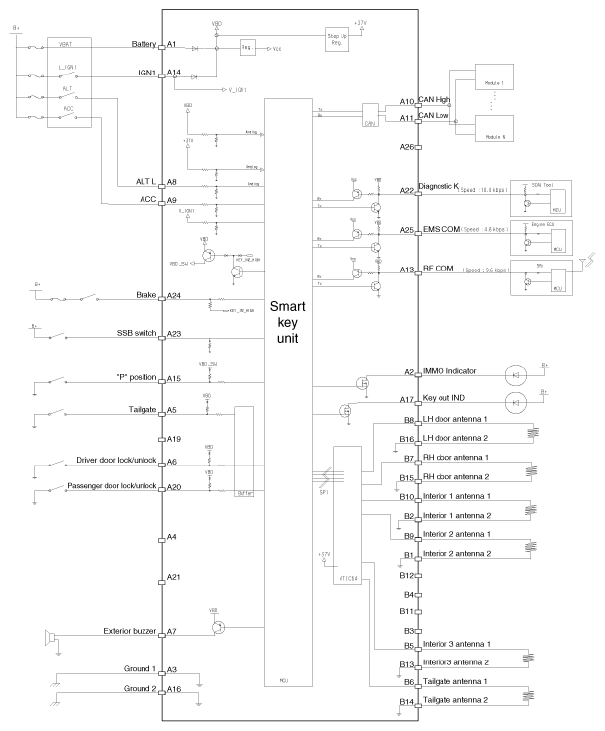

Fig 1: Smart Key Unit - Circuit Diagram

G08329095

Courtesy of KIA MOTORS AMERICA, INC.
