Components And Components Location: Components

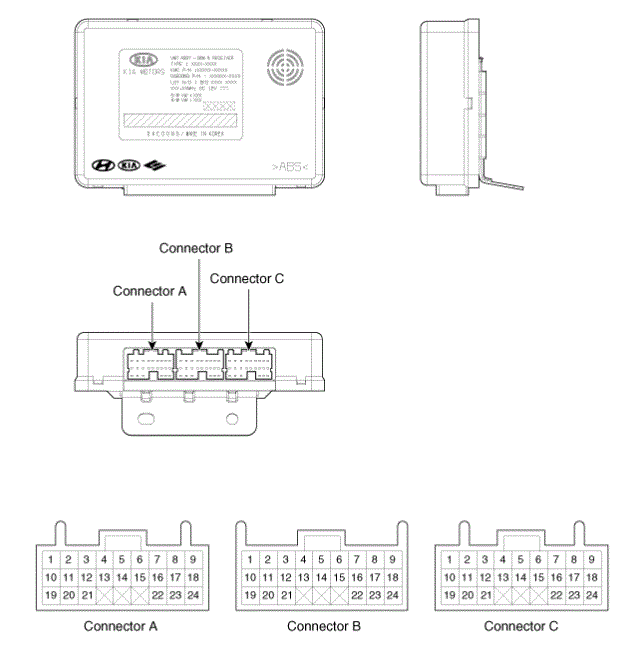

Fig 1: BCM Connectors

G00663247

Courtesy of KIA MOTORS AMERICA, INC.

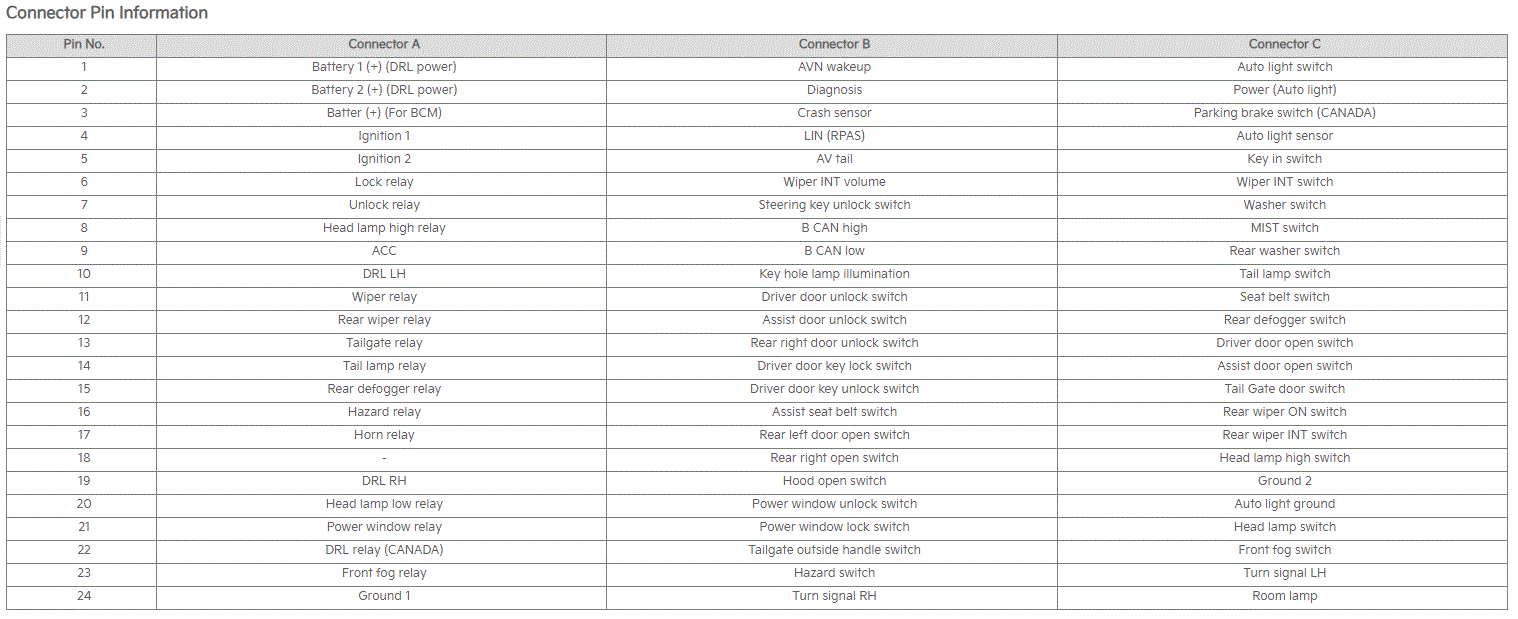

Fig 2: BCM Connector Pin Information

G00663248

Courtesy of KIA MOTORS AMERICA, INC.
