Repair procedures: Disassembly

WARNING: This page is about a different variant/trim than selected.

Disconnect the M-terminal (A) on the magnet switch assembly (B).

Fig 1: Identifying M-Terminal On Magnet Switch Assembly
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the 2 screws (A), detach the magnet switch assembly (B).

Fig 2: Identifying Magnet Switch Assembly And Screws
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the brush holder mounting screw (A) and through bolts (B).

Fig 3: Identifying Brush Holder Mounting Screw And Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear bracket (A) and brush holder assembly (B).

Fig 4: Identifying Rear Bracket And Brush Holder Assembly
Courtesy of KIA MOTORS AMERICA, INC.

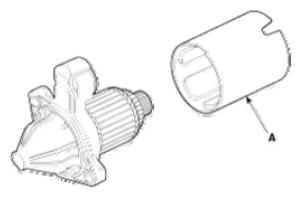

Remove the yoke (A).

Fig 5: Identifying Yoke
Courtesy of KIA MOTORS AMERICA, INC.
Remove the packing (A), lever plate (B), lever (C) and the armature (D).

Fig 6: Identifying Packing, Lever Plate, Lever And Armature
Courtesy of KIA MOTORS AMERICA, INC.
Press the stopper (A) using a socket (B).

Fig 7: Pressing Stopper Using Socket
Courtesy of KIA MOTORS AMERICA, INC.
Remove the stop ring (A) using stop ring pliers (B).

Fig 8: Removing Stop Ring Using Stop Ring Pliers
Courtesy of KIA MOTORS AMERICA, INC.
Remove the stop ring (B), stopper (A), overrunning clutch (C) and armature (D).

Fig 9: Identifying Stop Ring, Stopper, Overrunning Clutch And Armature
Courtesy of KIA MOTORS AMERICA, INC.
Reassembly is the reverse of disassembly.
NOTE: Using a suitable pulling tool (A), pull the overrunning clutch stopper (C) over the stop ring (B).

Fig 10: Pulling Overrunning Clutch Stopper Over Stop Ring
Courtesy of KIA MOTORS AMERICA, INC.
