Repair procedures: Removal

Release the residual pressure in fuel line (Refer to the "RELEASE RESIDUAL PRESSURE IN FUEL LINE ".
Remove the rear seat cushion (Refer to "REAR SEAT " in BD group).
Open the service cover (A).

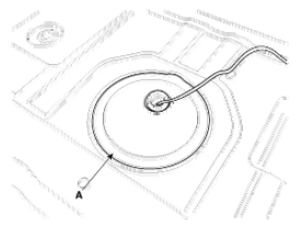

Fig 1: Identifying Service Cover
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the fuel pump connector (A) and the fuel tank pressure sensor connector (B).

Fig 2: Identifying Fuel Pump Connector And Fuel Tank Pressure Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the fuel feed tube quick-connector (A), the vapor hose (B) and the vapor tube quick-connector (C).

Fig 3: Identifying Fuel Feed Tube Quick-Connector, Vapor Hose And Vapor Tube Quick-Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel pump installation nuts and remove the fuel pump assembly.

Fig 4: Identifying Fuel Pump Plate, O-Ring And Fuel Tank Pressure Sensor
Courtesy of KIA MOTORS AMERICA, INC.
