Power Circuit Inspection

Open or Short Check
1. IG "ON".
2. Measure voltage between power terminal of the wheel speed sensor harness connector and chassis ground.
  Specification: Approx. B+

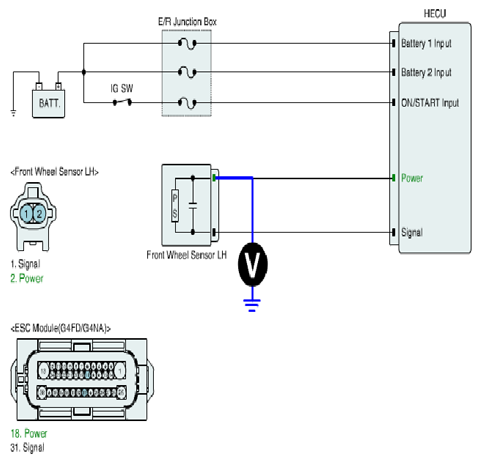

  Fig 1: Measuring Voltage Between Power Terminal Of Wheel Speed Sensor Harness Connector And Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.
3. Is the measured value within specifications?
  YES

  Go to "SIGNAL CIRCUIT INSPECTION " procedure.

  NO

  Repair open or short in power circuit between HECU harness connector and wheel speed sensor harness connector and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
