Power Circuit Inspection

Power Circuit Preliminary Inspection
1. IG KEY OFF.
2. Disconnect ETC connector.
3. IG KEY ON.
4. Measure voltage between TPS power circuit of ETC harness connector and chassis ground.
  Specification : Approx. 5V

  Fig 1: Measuring Voltage Between TPS Power Circuit Of ETC Harness Connector And Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.

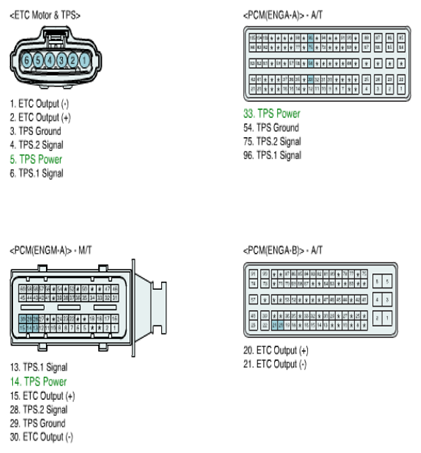

  Fig 2: Identifying ETC Motor, TPS And PCM Connector Terminals
  Courtesy of KIA MOTORS AMERICA, INC.
5. Is voltage within the specification?
  YES
  - Go to 'SIGNAL CIRCUIT INSPECTION ' procedure.
  NO
  - Go to next procedure.
Check for Short to Ground in Power Circuit
1. IG KEY OFF.
2. Disconnect ETC connector.
3. IG KEY ON.

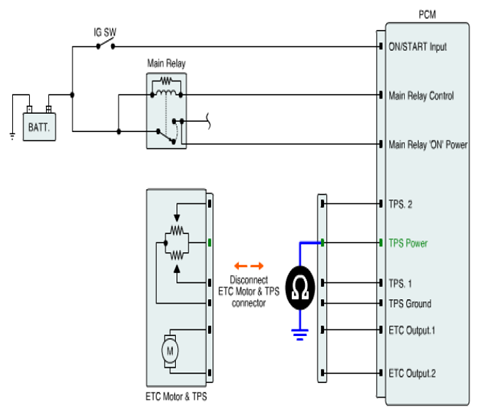

4. Measure resistance between TPS power terminal of ETC harness connector and chassis ground.
  Specification : Infinite

  Fig 3: Measuring Resistance Between TPS Power Terminal Of ETC Harness Connector And Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.

  Fig 4: Identifying ETC Motor, TPS And PCM Connector Terminals
  Courtesy of KIA MOTORS AMERICA, INC.
5. Is resistance within specification?
  YES
  - Go to next procedure.
  NO
  - Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Check Open in Power Circuit
1. IG KEY OFF.
2. Disconnect ETC connector and PCM connector.

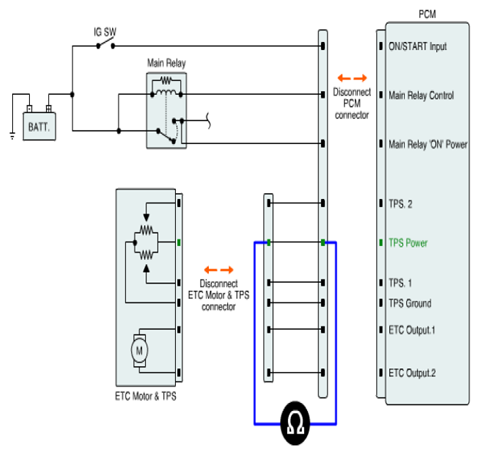

3. Measure resistance between both ends of TPS Power line.
  Specification : Below 1Ω

  Fig 5: Measuring Resistance Between Both Ends Of TPS Power Line
  Courtesy of KIA MOTORS AMERICA, INC.

  Fig 6: Identifying ETC Motor, TPS And PCM Connector Terminals
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is resistance within specification?
  YES
  - Go to next procedure.
  NO
  - Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
