Repair Procedures: Removal

WARNING: This page is about a different car, the 2014 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to protect your hands.

Information

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Disconnect the negative (-) battery terminal.
Remove the center fascia panel (A).
(Refer to "CRASH PAD ")

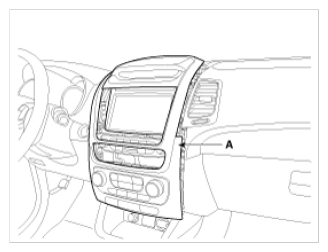

Fig 1: Identifying Center Fascia Panel
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connectors and cables (A) from center fascia panel.

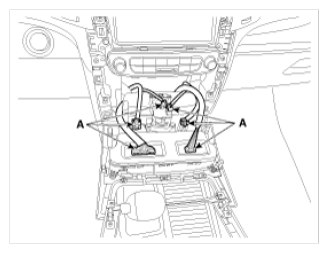

Fig 2: Identifying Center Fascia Panel Cables
Courtesy of KIA MOTORS AMERICA, INC.
Remove the crash pad center air vent (A).

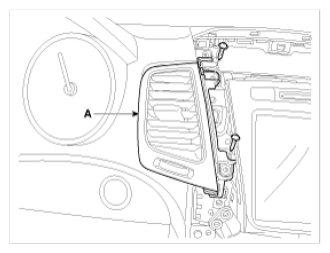

Fig 3: Identifying Crash Pad Center Air Vent (LH)
Courtesy of KIA MOTORS AMERICA, INC.

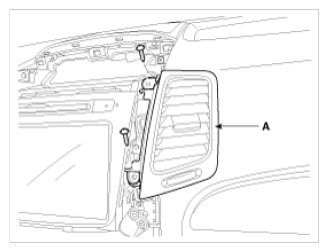

Fig 4: Identifying Crash Pad Center Air Vent (RH)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the audio head unit (A) from crash pad after loosening the screws (4EA).

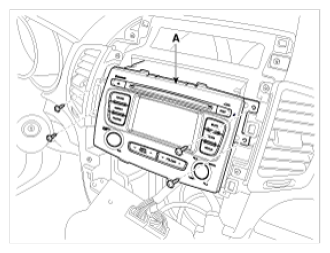

Fig 5: Identifying Audio Head Unit
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connectors and cables (A) from head unit.

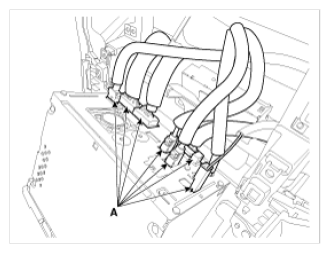

Fig 6: Identifying Head Unit Cables
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When the compact disc is not ejected, do not remove it forcibly.
